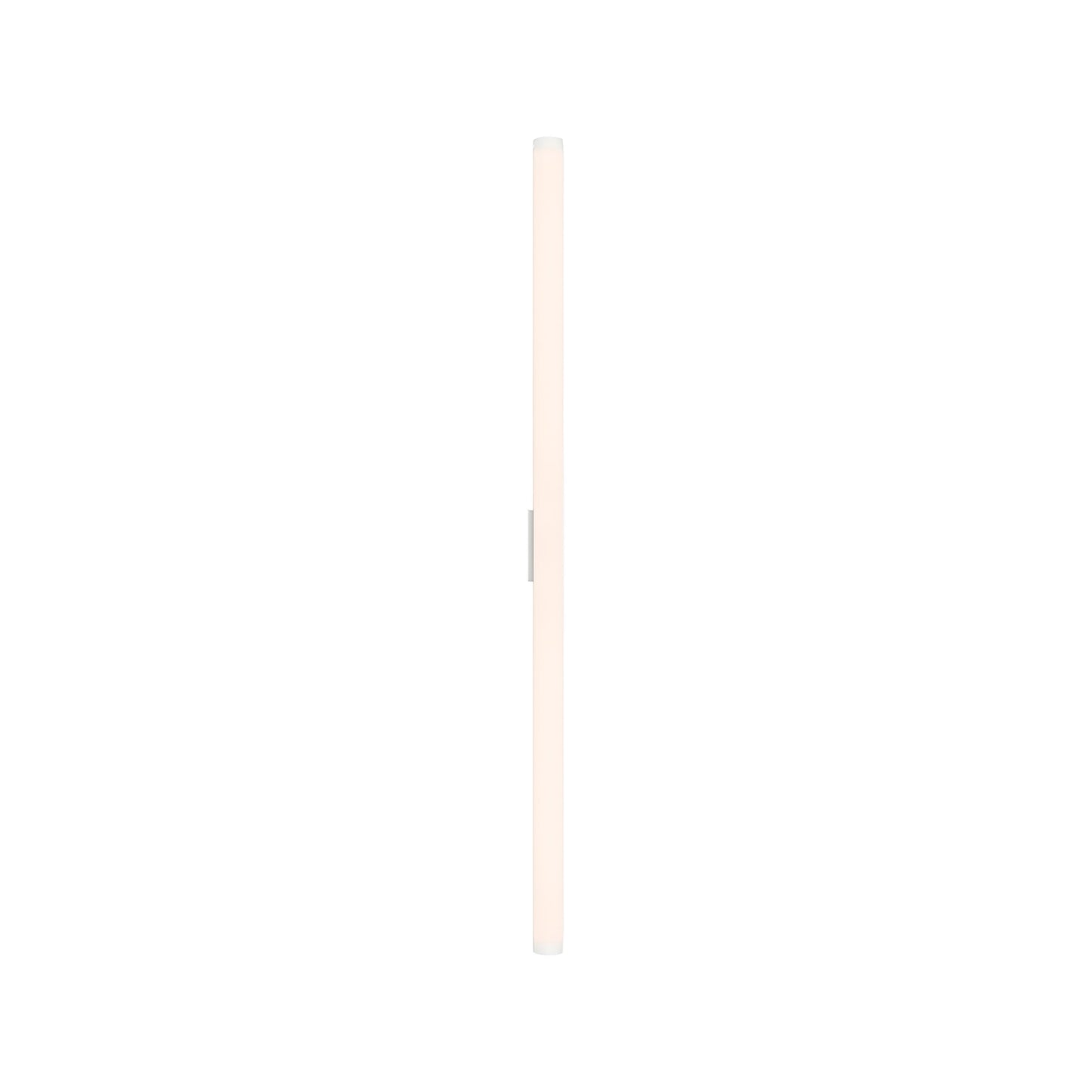

The Pipeline LED Vanity Wall Light from PureEdge Lighting brings power and energy-efficiency to bathroom lighting, as well as separate dressing spaces. A slender tube diffuser capped with metal at both ends suspends from a versatile canopy wall mount. This fixture and its minimalist design is perfect for yielding to surrounding bath décor.
Product Features:
- Collection: Pipeline
- Designer: Gregory Kay
- Country of Origin: United States of America
- Warranty: 5 Years
- Dimming: TRIAC, ELV, 0-10V
- ADA Compliant
- Title 24 Compliant
- Fixture mounts horizontally or vertically. Floating Canopy can mount anywhere along the length of the channel to accommodate off-center junction boxes.
- C1R Backplate - Reveals only the slightest outline of the canopy that mounts to a Slim Profile junction box recommended for new construction application
- C4R Backplate - Round 4.6" Canopy mounts to a standard 4" junction box
Dimensions:
- Round
- 12-Inch: 13"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 18-Inch: 19"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 24-Inch: 25"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 36-Inch: 37"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 48-Inch: 49"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 60-Inch: 61"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 72-Inch: 73"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 84-Inch: 85"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - 96-Inch: 97"W X 4.6"H; 1.6" Extension
Backplate: 4.6"D - Rectangle
- 12-Inch: 13"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 18-Inch: 19"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 24-Inch: 25"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 36-Inch: 37"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 48-Inch: 49"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 60-Inch: 61"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 72-Inch: 73"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 84-Inch: 85"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H - 96-Inch: 97"W X 1.25"H; 1.6" Extension
Backplate: 1.25"H
Lamping:
- 12-Inch: 1 X 5W 24V integrated LED module; 425 lumens, 95 CRI, 3000K (included)
- 18-Inch: 1 X 7.5W 24V integrated LED module; 637.5 lumens, 95 CRI, 3000K (included)
- 24-Inch: 1 X 10W 24V integrated LED module; 850 lumens, 95 CRI, 3000K (included)
- 36-Inch: 1 X 15W 24V integrated LED module; 1275 lumens, 95 CRI, 3000K (included)
- 48-Inch: 1 X 20W 24V integrated LED module; 1700 lumens, 95 CRI, 3000K (included)
- 60-Inch: 1 X 25W 24V integrated LED module; 2125 lumens, 95 CRI, 3000K (included)
- 72-Inch: 1 X 30W 24V integrated LED module; 2550 lumens, 95 CRI, 3000K (included)
- 84-Inch: 1 X 35W 24V integrated LED module; 2975 lumens, 95 CRI, 3000K (included)
- 96-Inch: 1 X 40W 24V integrated LED module; 3400 lumens, 95 CRI, 3000K (included)
Ratings:
- Listing: cETLus Listed, Damp, ADA Compliant, Title 24 Compliant
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
