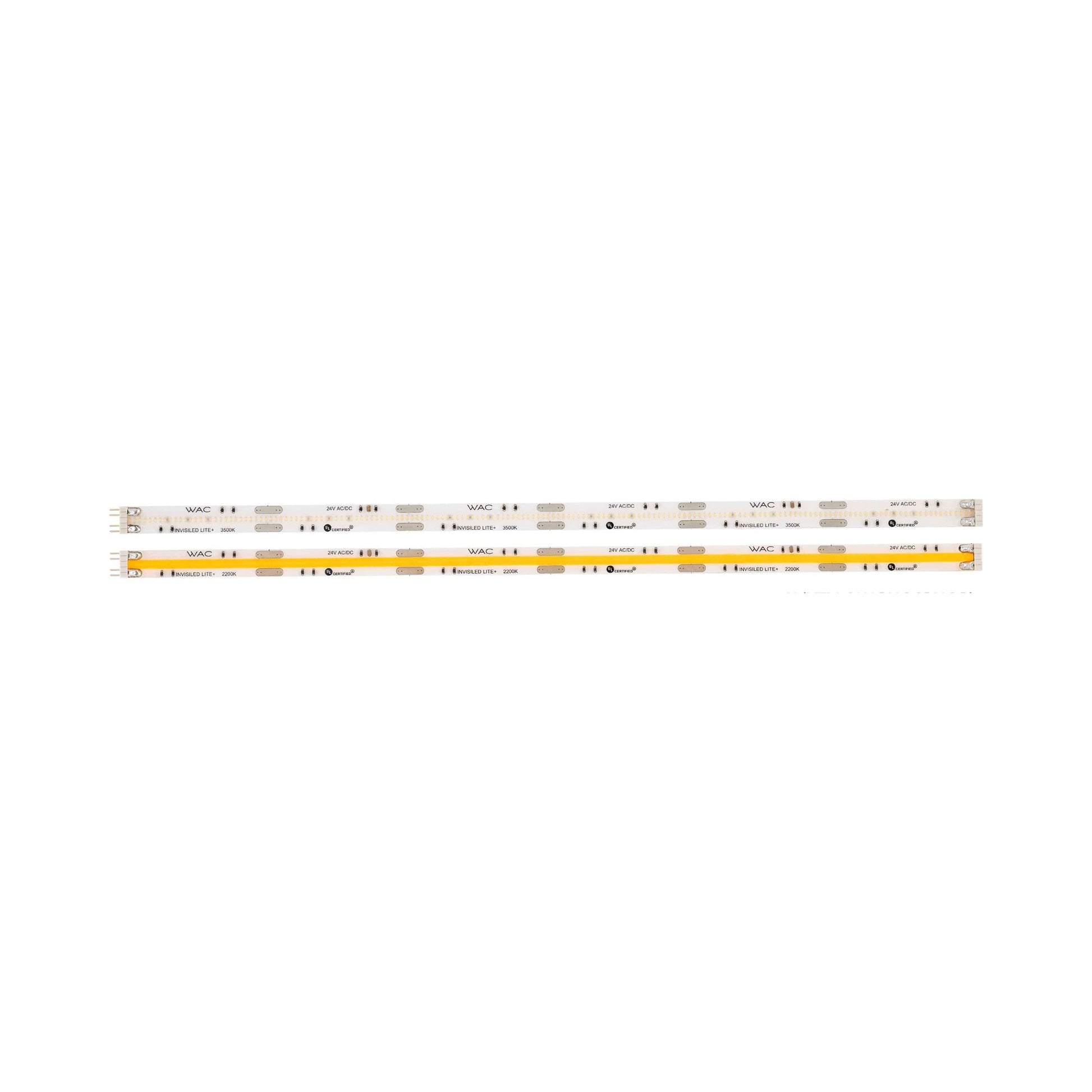

InvisiLED® Lite+ 24V LED Tape Light System

The InvisiLED® Lite+ 24V LED Tape Light System from WAC Lighting offers multiple quality features for lighting installations. With a slender profile, it delivers an easy fit, cuttable every two inches at the end of a run. Mount this tape on ceiling or wall systems in any orientation.

Product Features:

• Collection: Invisiled
• Country of Origin: China
• Warranty: 5 Years
• Dimmable
• Rated Life: 50000 Hours

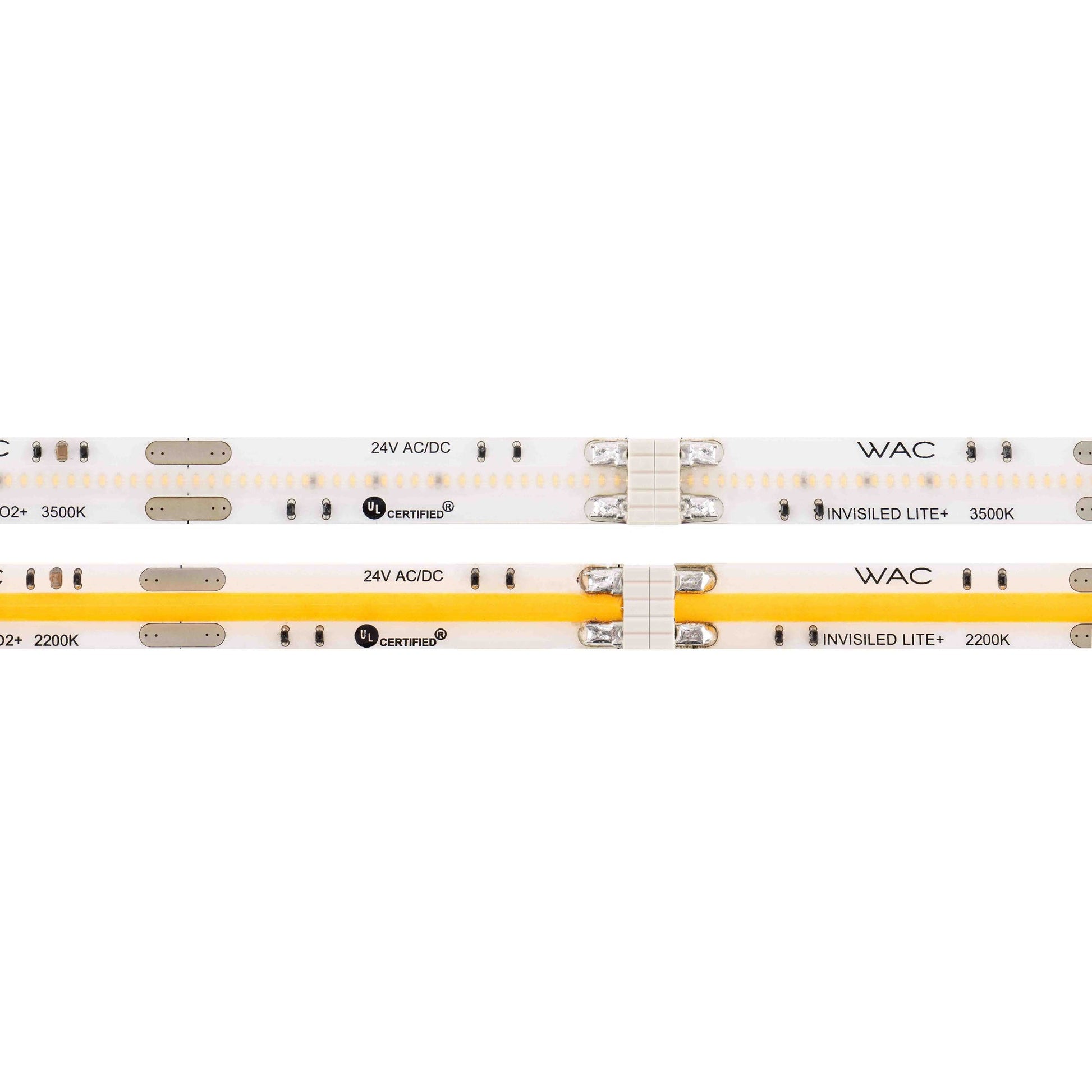

• Can be field cut, male to male adapter required to re-use female side
• Ultra thin profile at 1/8"
• May be field cut every 2" at the end of a run
• Can be mounted on ceiling or wall in all orientations
• ADA Compliant
• Title 24 Compliant
• Available in various color temperatures and sizes

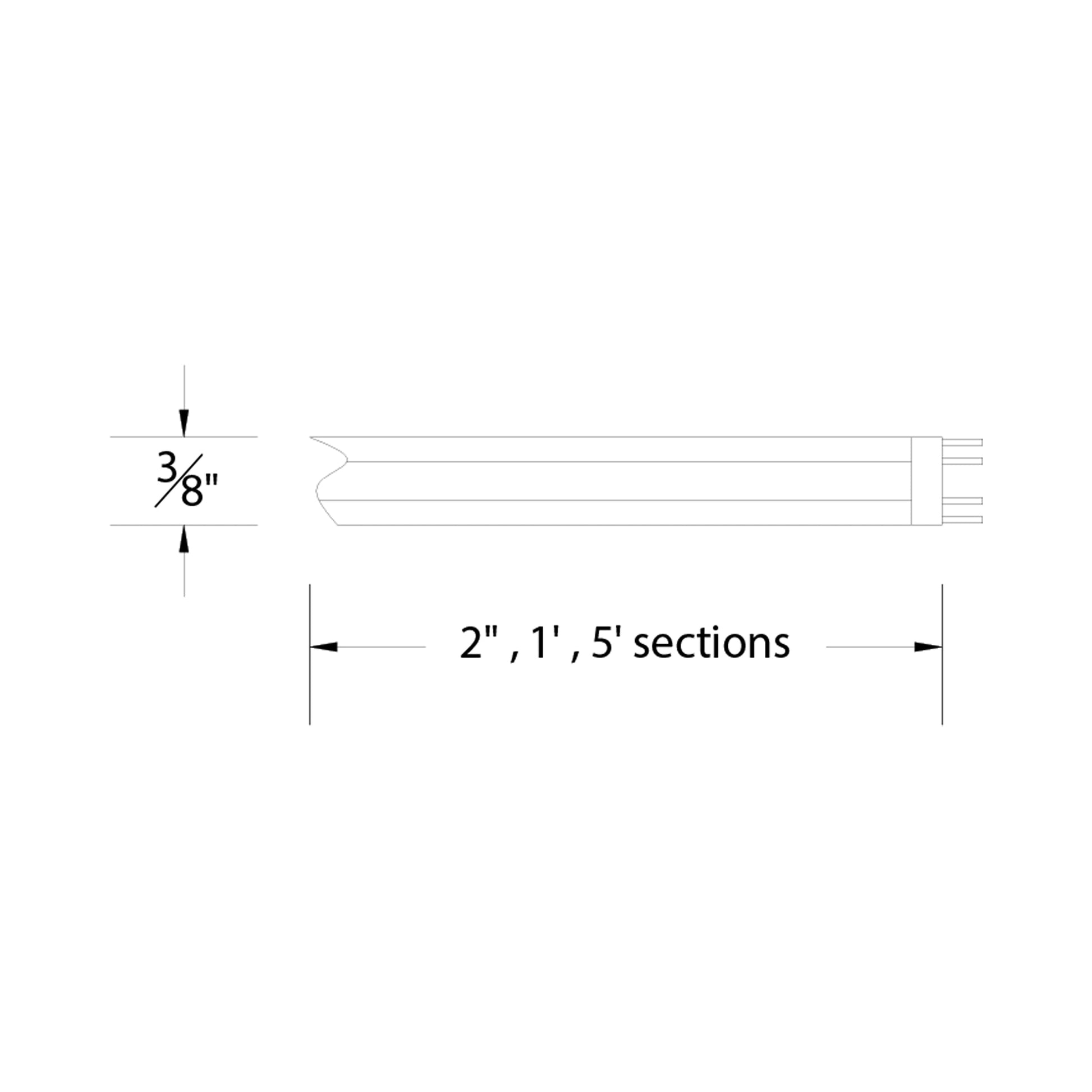

Dimensions:

• 2-Inch: 2"W X 0.13"H
  Product Weight: 0.03 lbs

• 1-Foot: 12"W X 0.13"H
  Product Weight: 0.03 lbs

• 5-Feet: 60"W X 0.13"H
  Product Weight: 0.11 lbs

Lamping:

• 2-Inch:
• 2200K: 1 X 0.37W 24V integrated LED module; 17.7 lumens, 90 CRI, 2200K (included)
• 2700K: 1 X 0.37W 24V integrated LED module; 22.5 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 0.37W 24V integrated LED module; 23.8 lumens, 90 CRI, 3000K (included)
• 3500K: 1 X 0.37W 24V integrated LED module; 24.2 lumens, 90 CRI, 3500K (included)
• 4500K: 1 X 0.37W 24V integrated LED module; 24.8 lumens, 90 CRI, 4500K (included)

• 10 X 2-Inch:
• 2200K: 10 X 0.37W 24V integrated LED modules; 177 lumens, 90 CRI, 2200K (included)
• 2700K: 10 X 0.37W 24V integrated LED modules; 225 lumens, 90 CRI, 2700K (included)
• 3000K: 10 X 0.37W 24V integrated LED modules; 238 lumens, 90 CRI, 3000K (included)
• 3500K: 10 X 0.37W 24V integrated LED modules; 242 lumens, 90 CRI, 3500K (included)
• 4500K: 10 X 0.37W 24V integrated LED modules; 248 lumens, 90 CRI, 4500K (included)

• 1 Foot:
• 2200K: 1 X 2.2W 24V integrated LED module; 106.2 lumens, 90 CRI, 2200K (included)
• 2700K: 1 X 2.2W 24V integrated LED module; 135 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 2.2W 24V integrated LED module; 140.3 lumens, 90 CRI, 3000K (included)
• 3500K: 1 X 2.2W 24V integrated LED module; 145 lumens, 90 CRI, 3500K (included)
• 4500K: 1 X 2.2W 24V integrated LED module; 149 lumens, 90 CRI, 4500K (included)

• 40 X 1 Foot:
• 2200K: 40 X 2.2W 24V integrated LED modules; 4248 lumens, 90 CRI, 2200K (included)
• 2700K: 40 X 2.2W 24V integrated LED modules; 5400 lumens, 90 CRI, 2700K (included)
• 3000K: 40 X 2.2W 24V integrated LED modules; 5612 lumens, 90 CRI, 3000K (included)
• 3500K: 40 X 2.2W 24V integrated LED modules; 5800 lumens, 90 CRI, 3500K (included)
• 4500K: 40 X 2.2W 24V integrated LED modules; 5960 lumens, 90 CRI, 4500K (included)

• 5 Feet:
• 2200K: 1 X 11W 24V integrated LED module; 531 lumens, 90 CRI, 2200K (included)
• 2700K: 1 X 11W 24V integrated LED module; 675 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 11W 24V integrated LED module; 701.5 lumens, 90 CRI, 3000K (included)
• 3500K: 1 X 11W 24V integrated LED module; 725 lumens, 90 CRI, 3500K (included)
• 4500K: 1 X 11W 24V integrated LED module; 745 lumens, 90 CRI, 4500K (included)

Ratings:

• Listing: cULus Listed, Damp, ADA Compliant, Title 24 Compliant, Closet-Rated Certified

Specifications

Installation Guide
