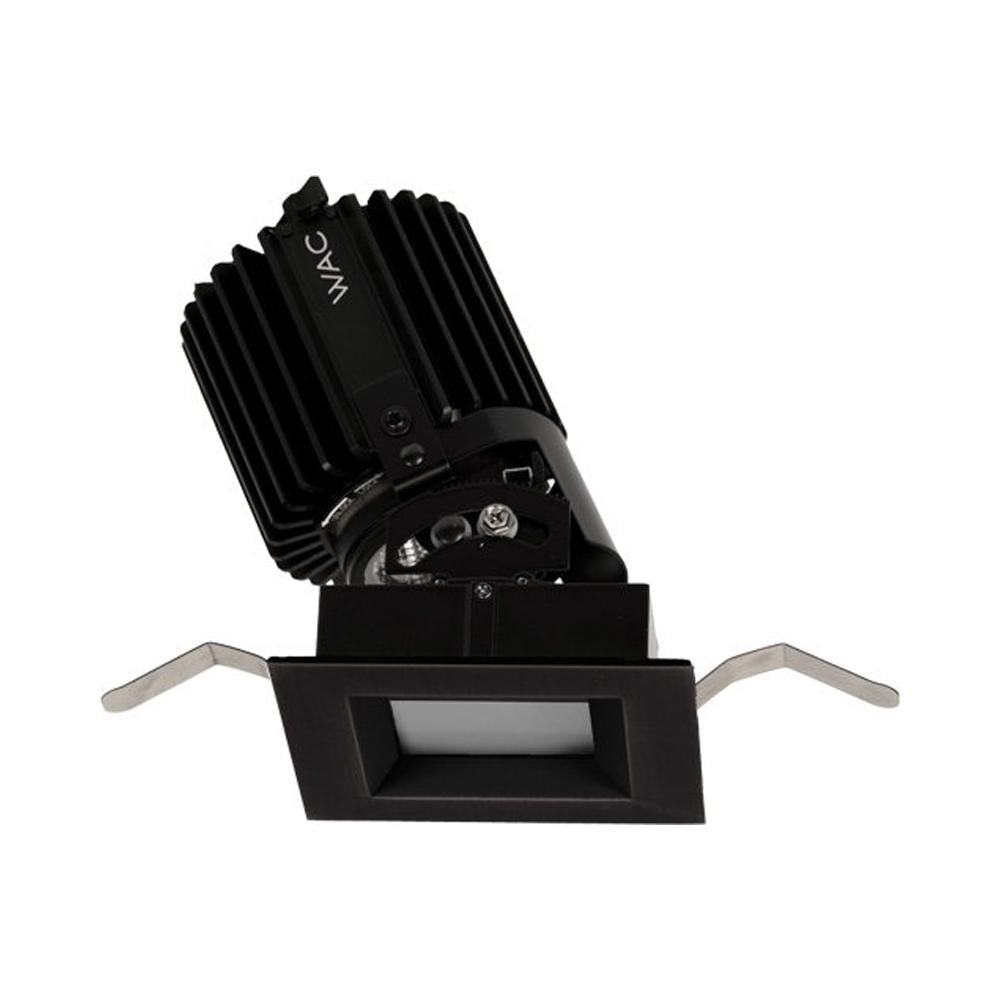

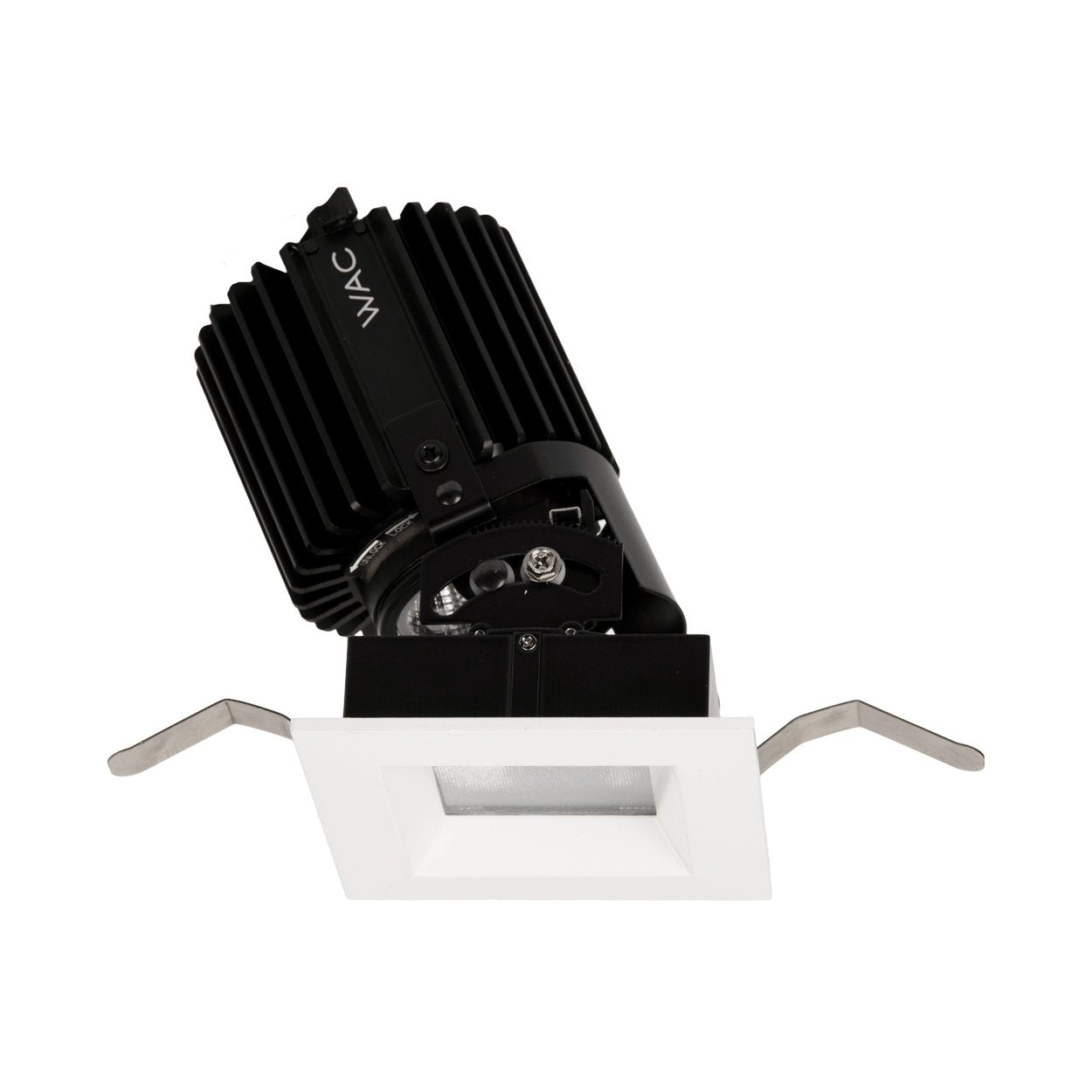

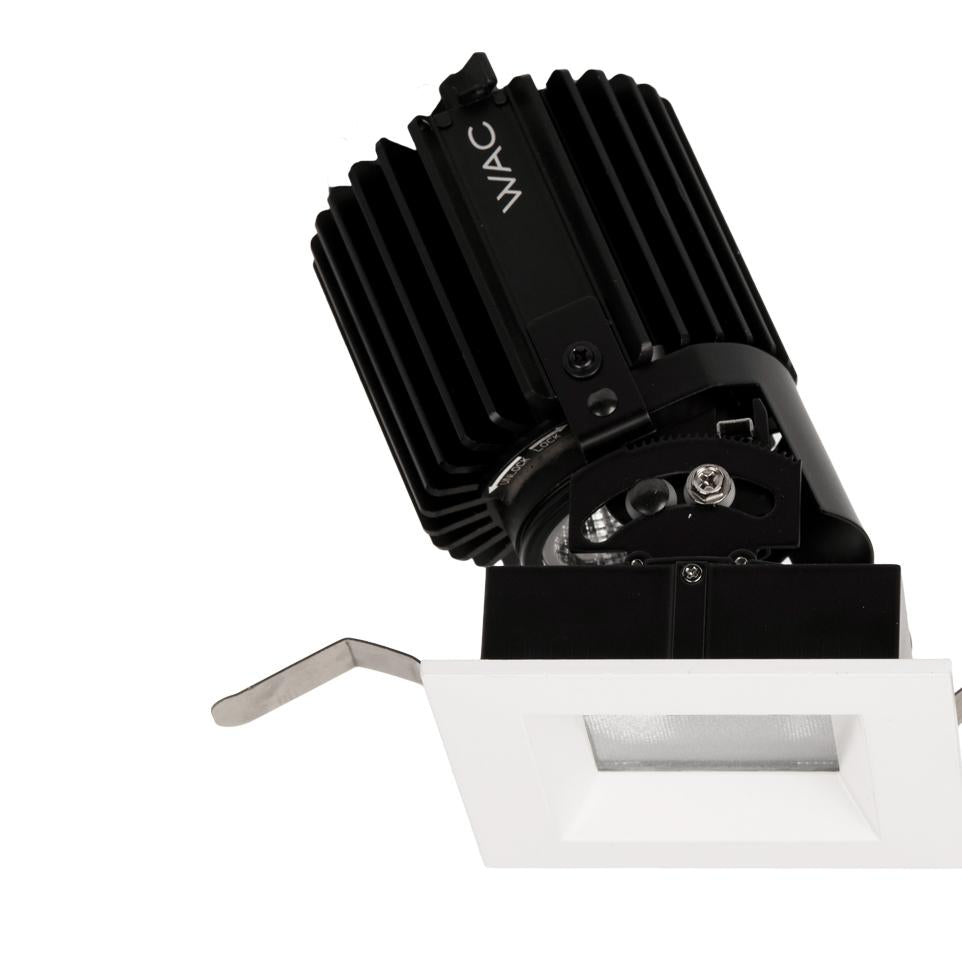

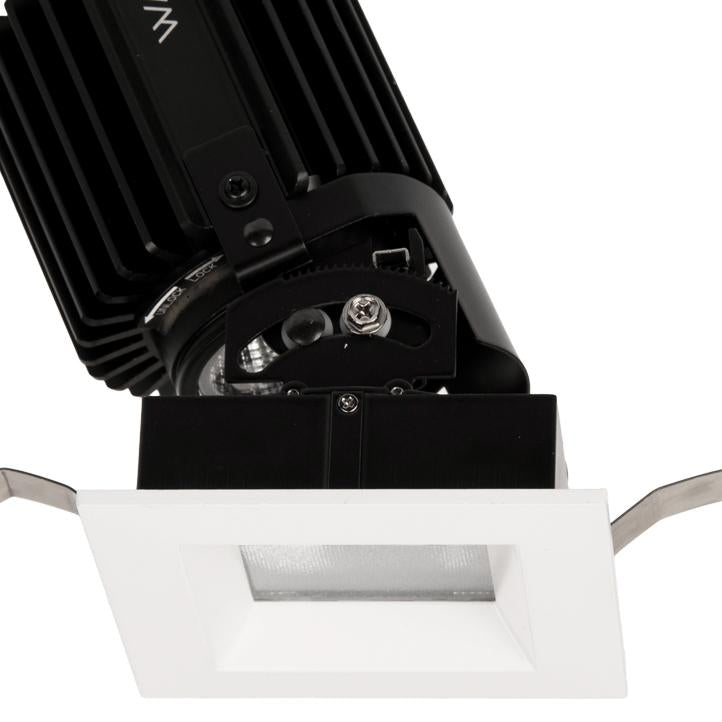

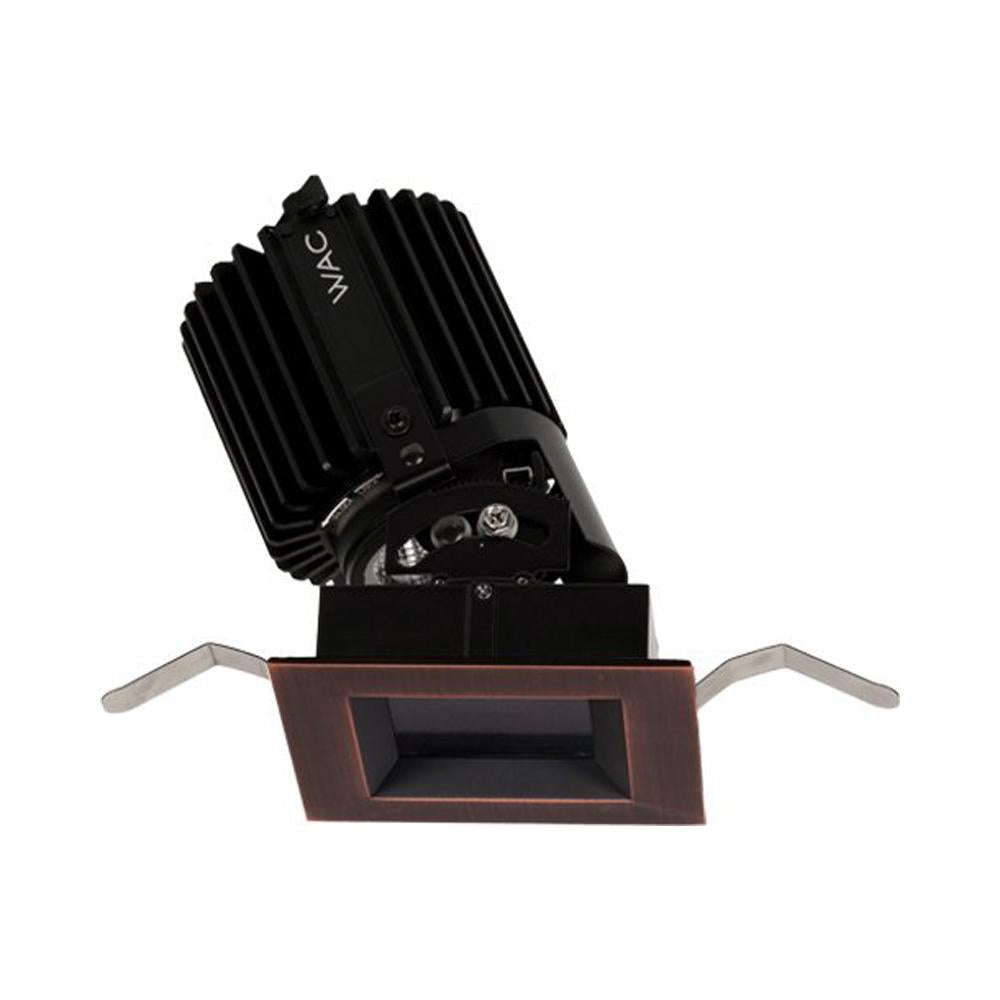

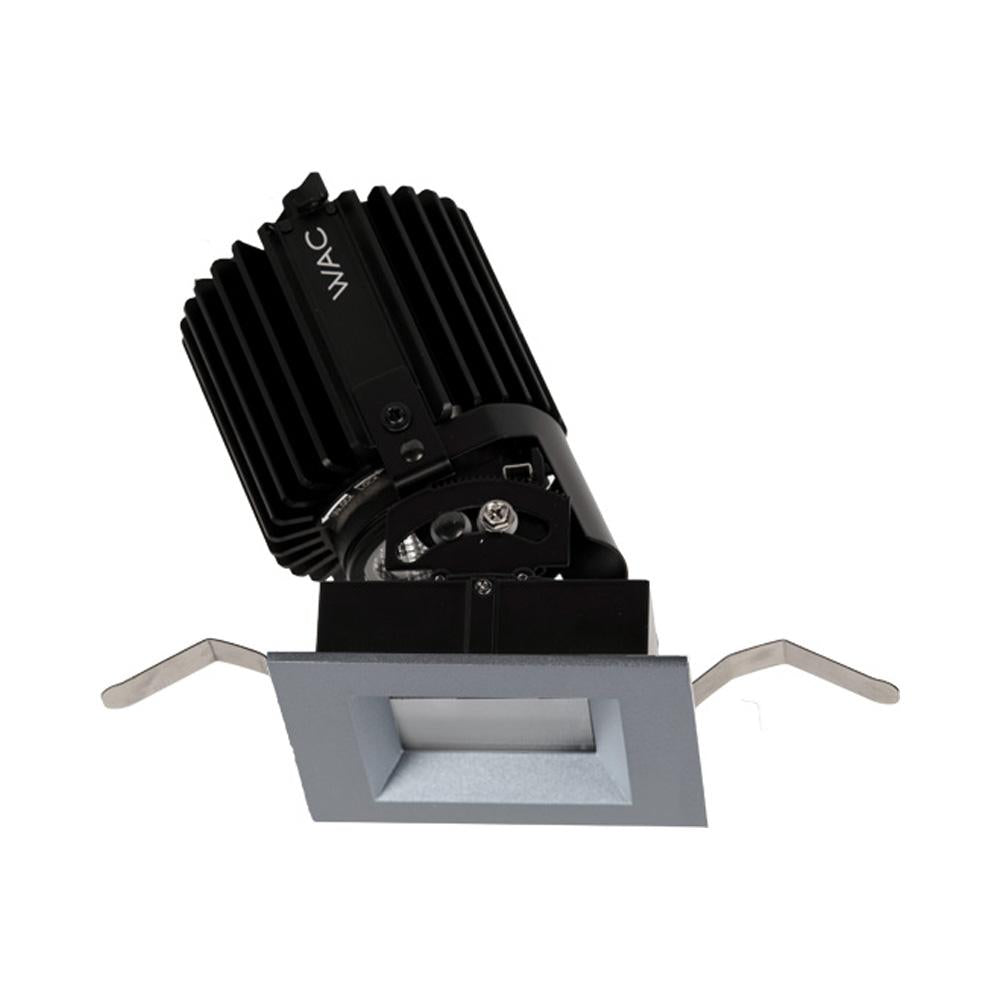

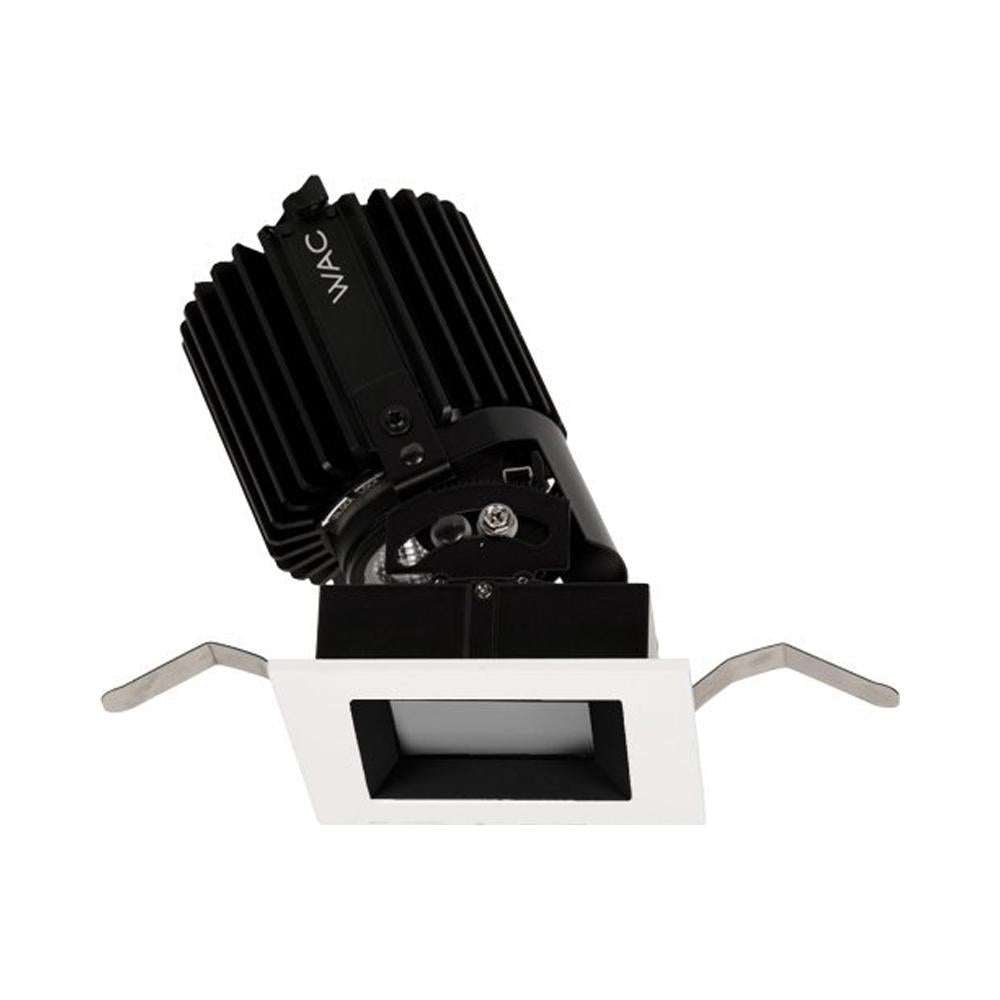

Volta 2IN Square Adjustable LED Recessed Trim represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.
Product Features:
- Collection: Volta
- Country of Origin: United States
- Warranty: 5 Year
- Dimming: ELV (100-5%), 0-10V (100-0%), Lutron Hi-Lumen 1% Ecosystem Fade-to-Black option
- Beam Spread: 35-Degree, 25-Degree, 12-Degree
- Compatible Housings: R2SRL, R2SNT, R2SCT, R2SNL, R2SCL, R2BRT (sold separately)
- Title 24 Compliant
- Available in various beam spreads, color temperatures/CRIs and finishes
- More configurations available. Please contact cs@citylightssf.com to complete your lighting design

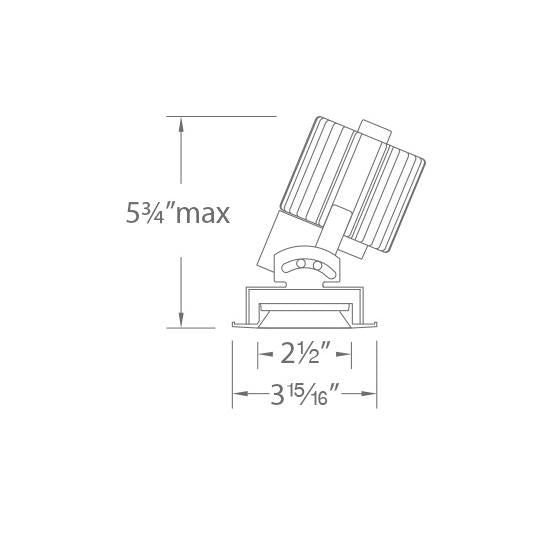

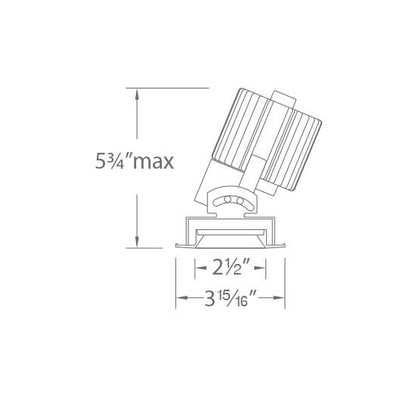

Dimensions:
- Dimensions: 3.94"W X 5.75"H
Product Weight: 1.32 lbs
Lamping:
-
12-Degree
- 2700K/85CRI: 1 X 10/15W 120-277V LED module; 342/238 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 10/15W 120-277V LED module; 360/248 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 10/15W 120-277V LED module; 378/259 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 10/15W 120-277V LED module; 292/202 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 10/15W 120-277V LED module; 310/212 lumens, 90 CRI, 3000K (included)
-
25-Degree
- 2700K/85CRI: 1 X 15/22W 120-277V LED module; 988/686 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 15/22W 120-277V LED module; 1040/718 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 15/22W 120-277V LED module; 1092/749 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 15/22W 120-277V LED module; 842/582 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 15/22W 120-277V LED module; 894/614 lumens, 90 CRI, 3000K (included)
-
35-Degree
- 2700K/85CRI: 1 X 15/22W 120-277V LED module; 964/670 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 15/22W 120-277V LED module; 1015/700 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 15/22W 120-277V LED module; 1066/731 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 15/22W 120-277V LED module; 822/568 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 15/22W 120-277V LED module; 873/599 lumens, 90 CRI, 3000K (included)
Ratings:
- Listing: ETL Listed, cETL Listed, Wet
Materials:
- Die-cast aluminum
