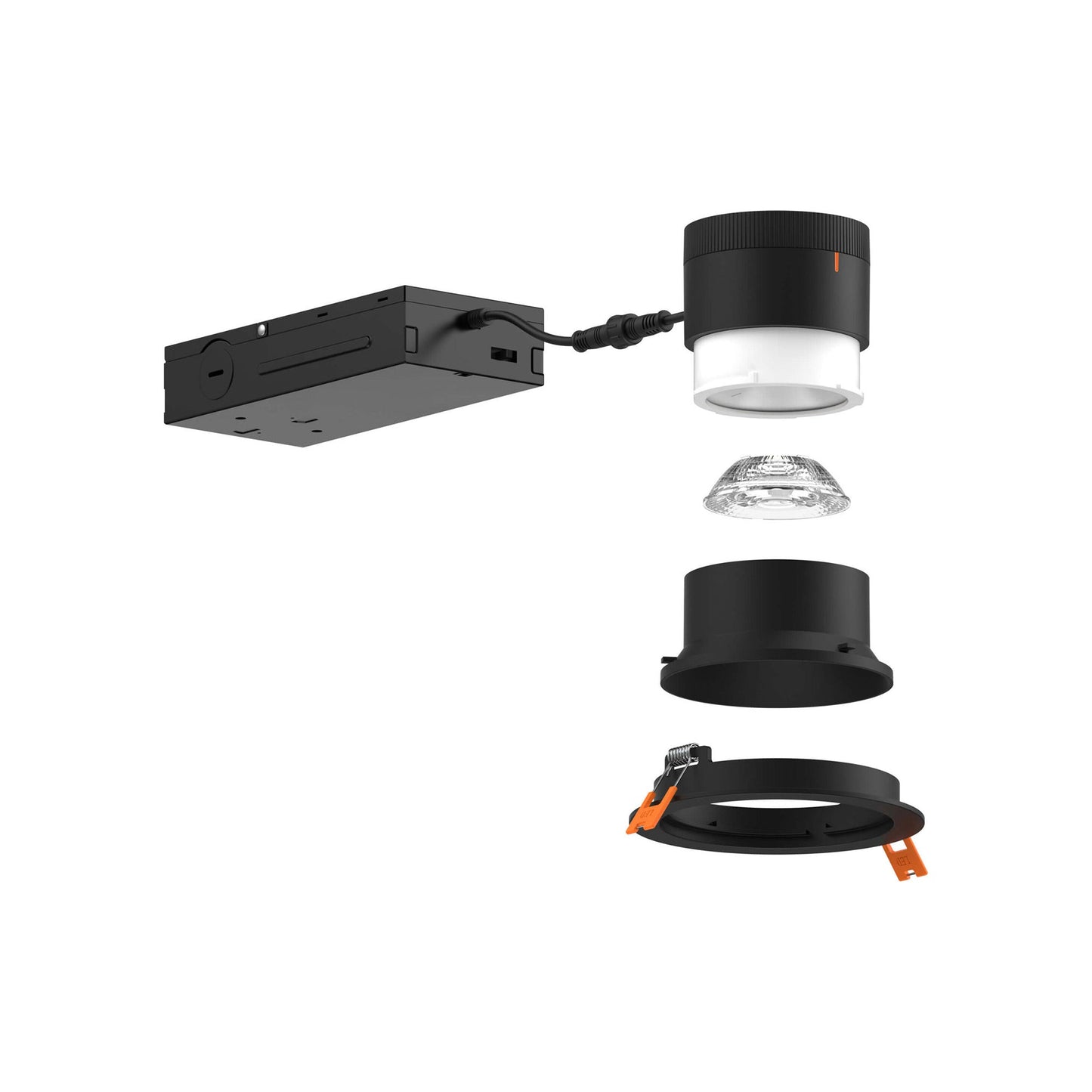

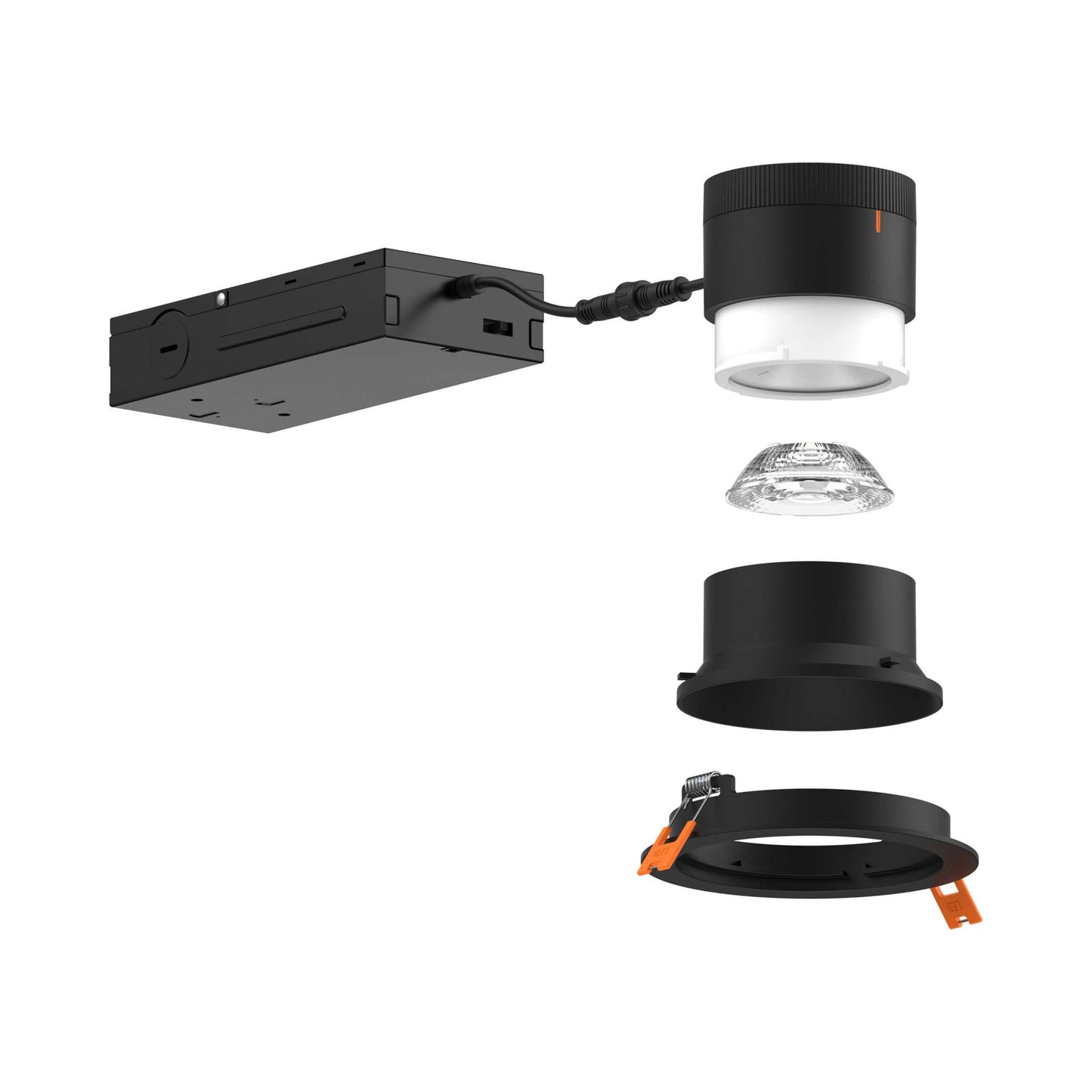

Moda Wall Wash LED Recessed Downlight

Endlessly configurable and engineered for virtually any environment, the Moda Wall Wash LED Recessed Downlight from DALS Lighting brings a remarkable depth of customization to recessed lighting, with a choice of sizes, finishes, trims, lenses, and reflectors that make it equally at home in a commercial showroom or a residential living space. Its newly upgraded gimbal reflector and wall wash trim add 154 additional configuration options, ensuring a precise, tailored result every single time. This is the recessed lighting solution for those who refuse to compromise on getting it exactly right.

Product Features:

• Collection: Moda
• Warranty: 5 Years
• Dimming: TRIAC (3-Inch, 4-Inch), ELV, 0-10V
• Beam Spread: 20/35/60 Degrees
• Title 24 Compliant
• Regressed, Slope ceiling and Trimless options

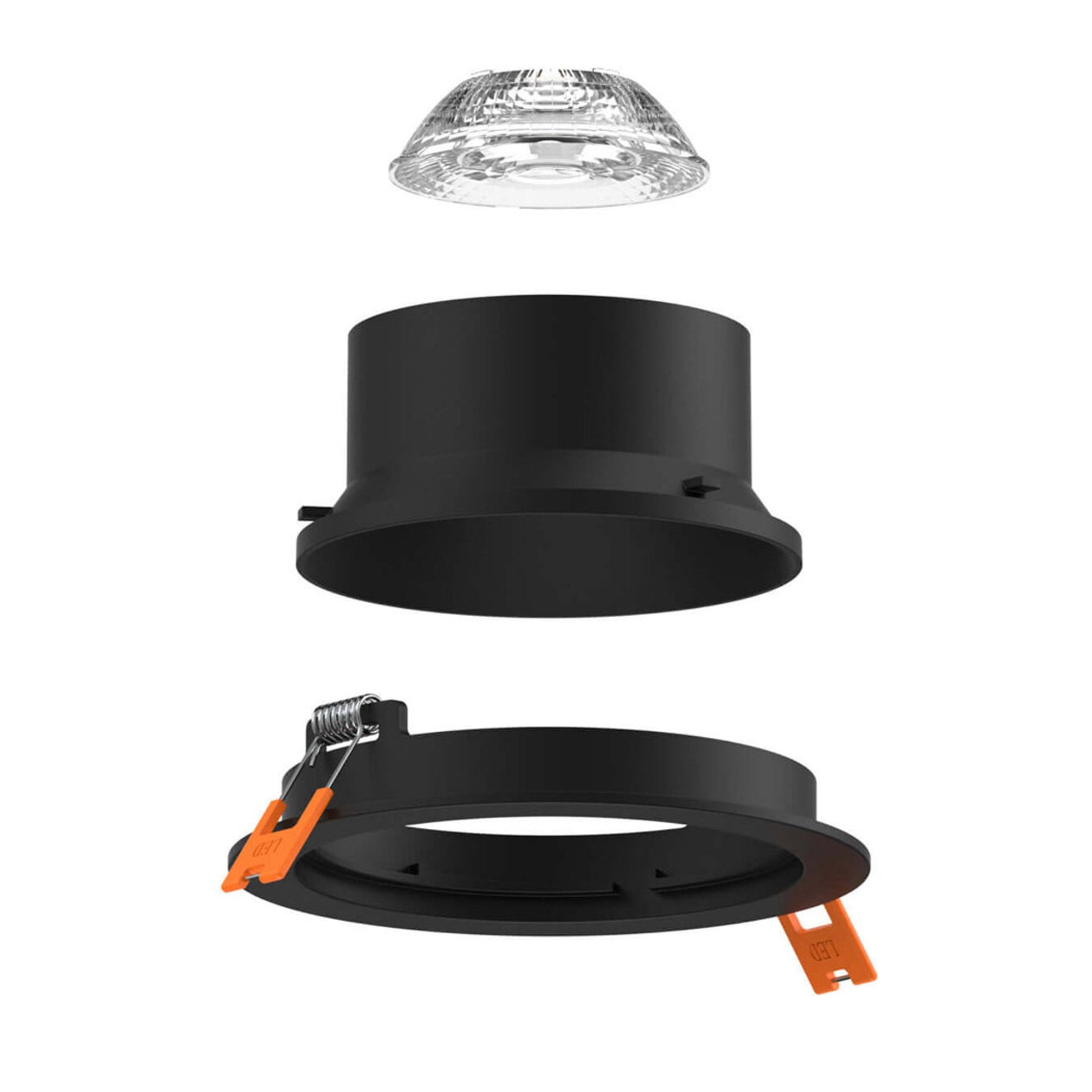

• Customizable trims and reflector shapes and colors

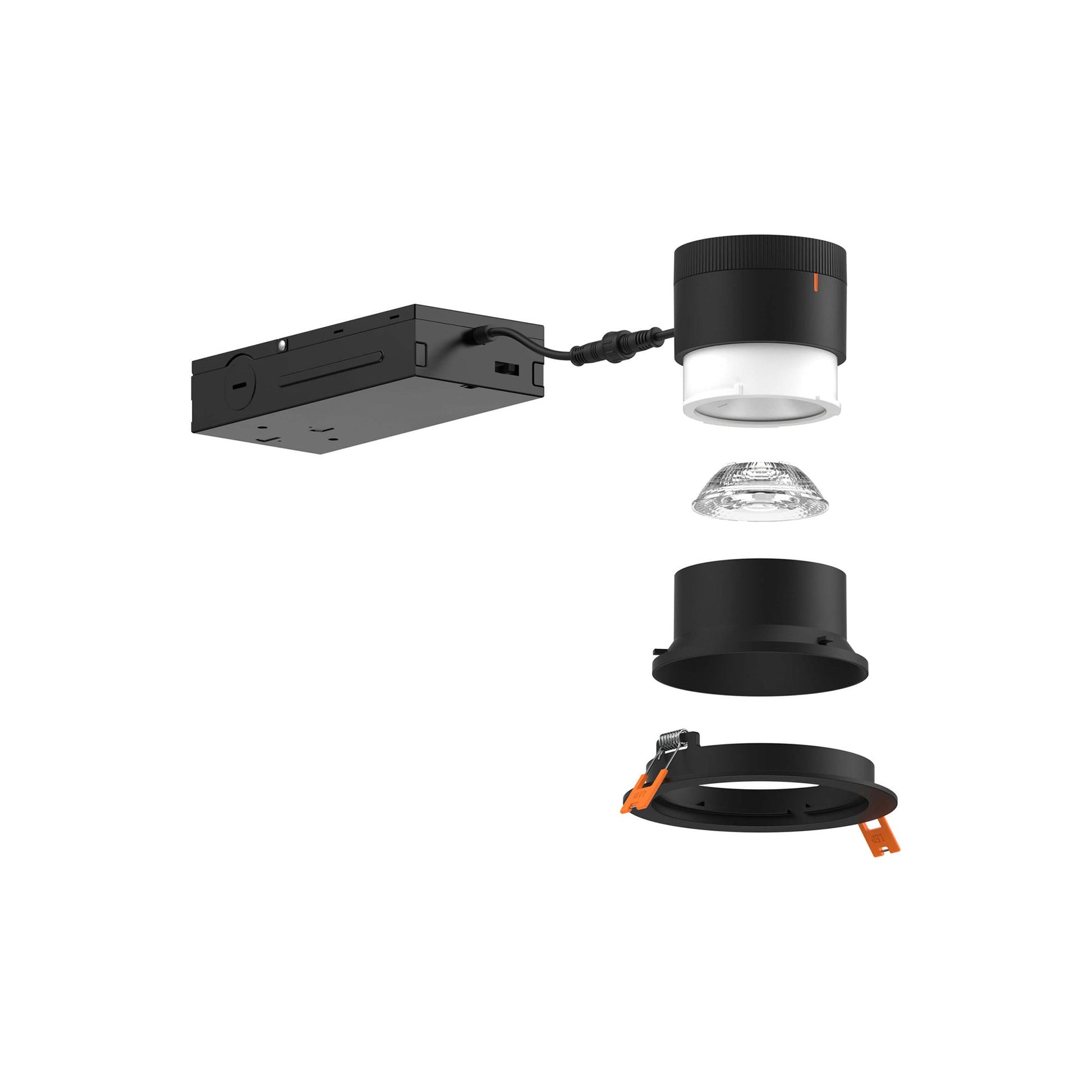

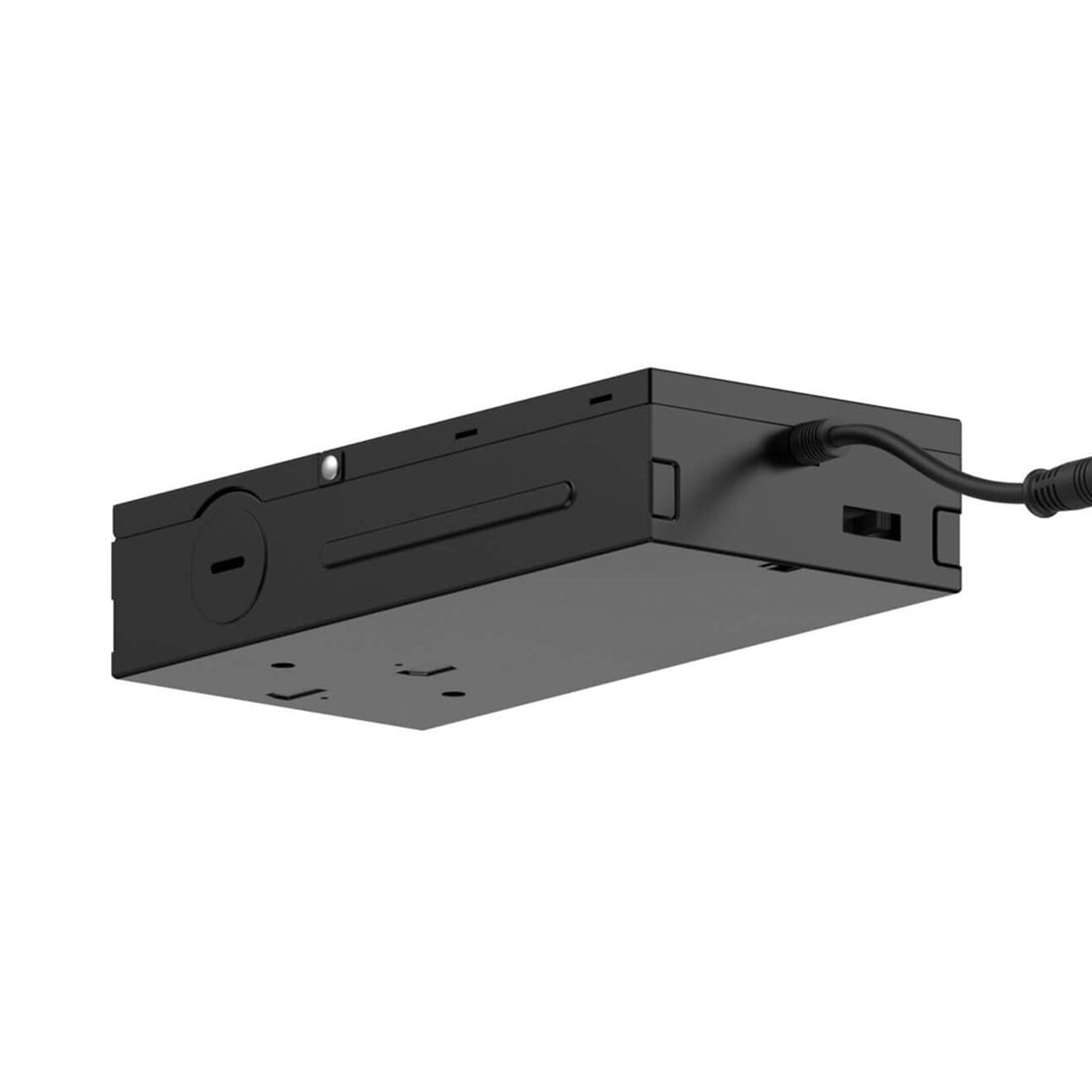

• Every fixture includes a junction box with an integrated dimmable driver
• Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
• Can be daisy-chained
• Available in various finishes, sizes and beam angles

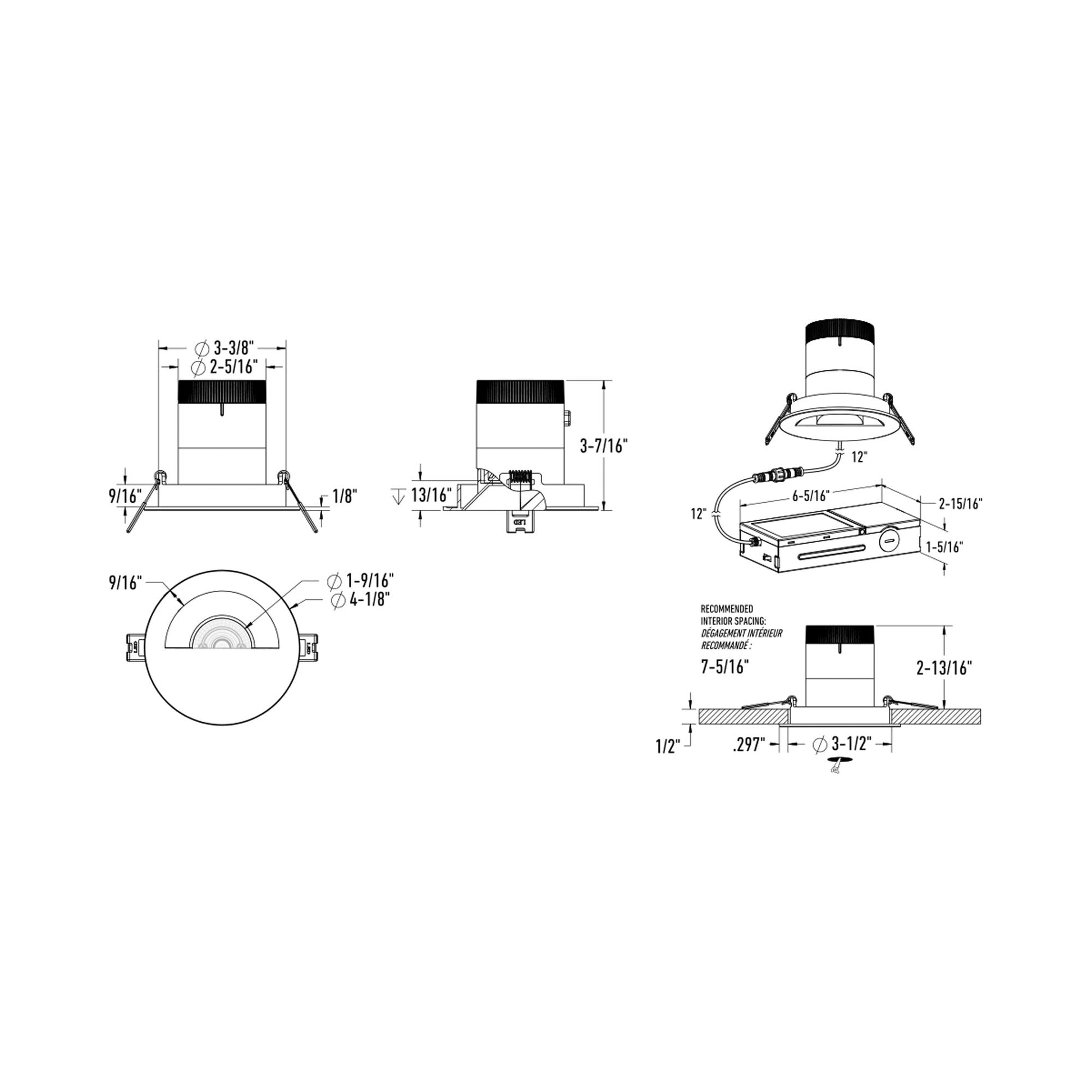

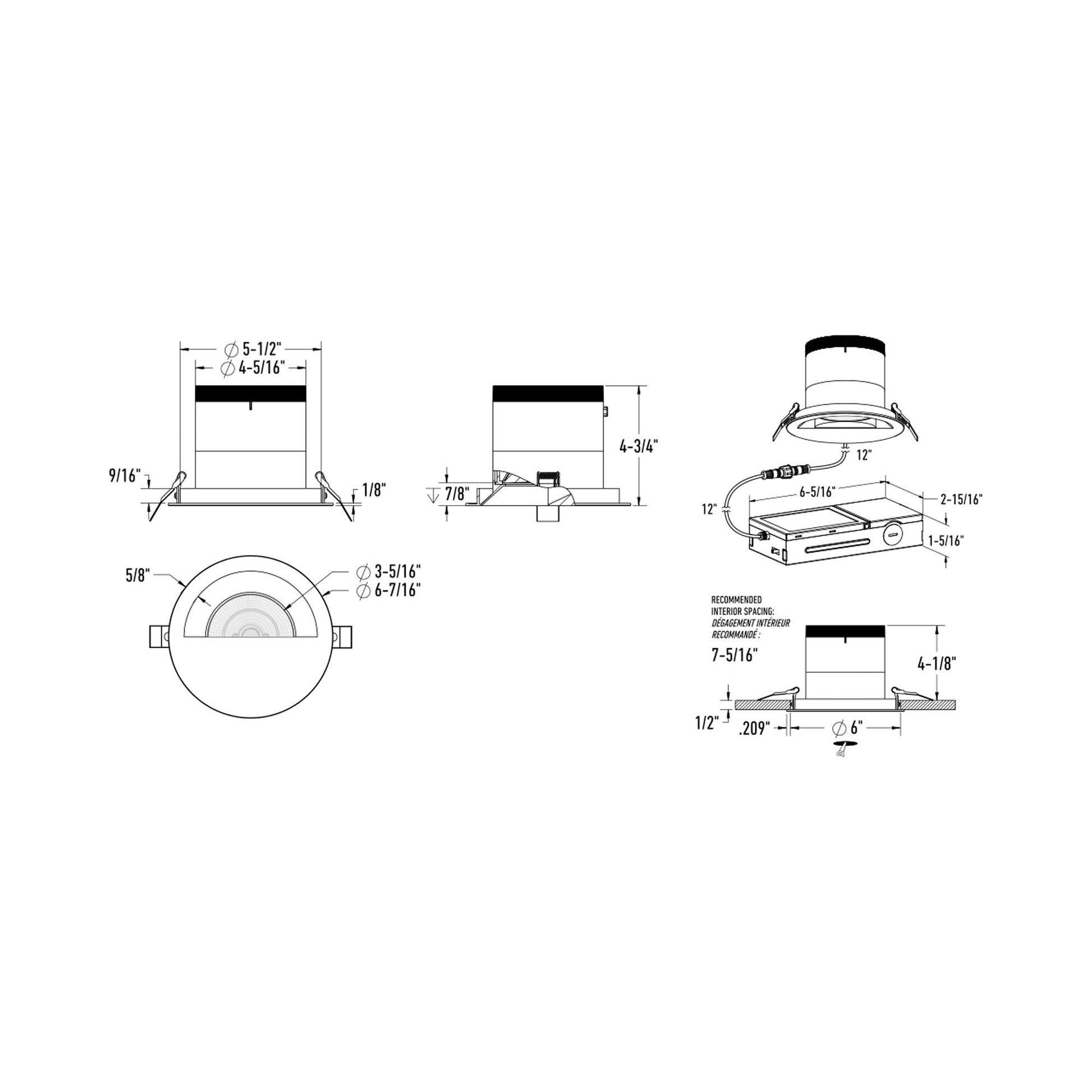

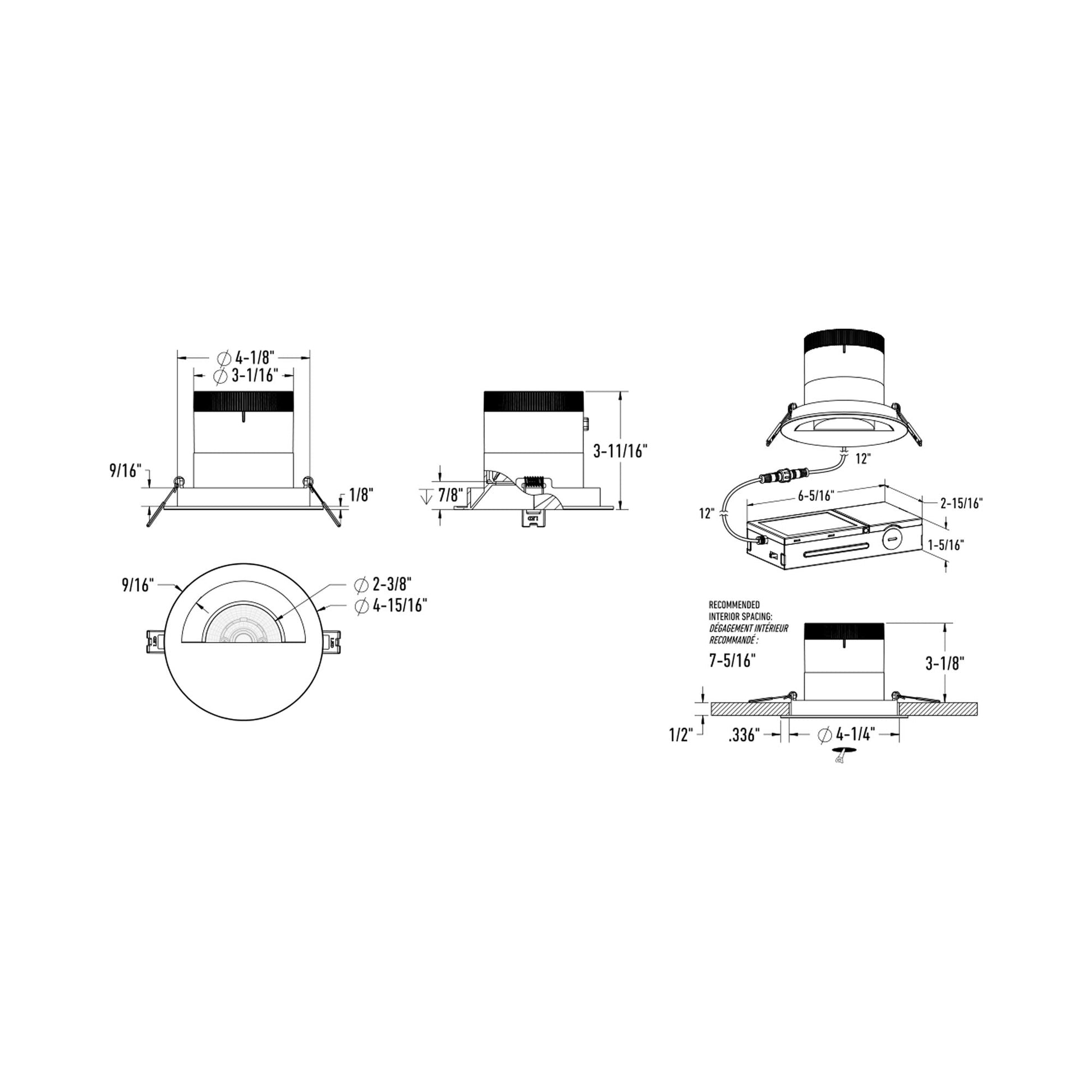

Dimensions:

• 3-Inch: 4.13"D X 3.44"H

• 4-Inch: 4.94"D X 3.69"H

• 6-Inch: 6.44"D X 4.75"H

Lamping:

• 3-Inch: 1 X 8W/10W/12W 120V/277V/347V integrated LED module; 1000 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable (included)
• 4-Inch: 1 X 16W/20W/24W 120V/277V/347V integrated LED module; 2200 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable (included)
• 6-Inch: 1 X 24W/30W/36W 120V/277V/347V integrated LED module; 3000 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable (included)

Ratings:

• Listing: cETLus Listed, Wet, Title 24 Compliant, IP65, IC Rated, FCC Certified

Materials:

• Aluminum, acrylic

Specifications - RC03
Specifications - RC04
Specifications - RC06

Installation Guide
