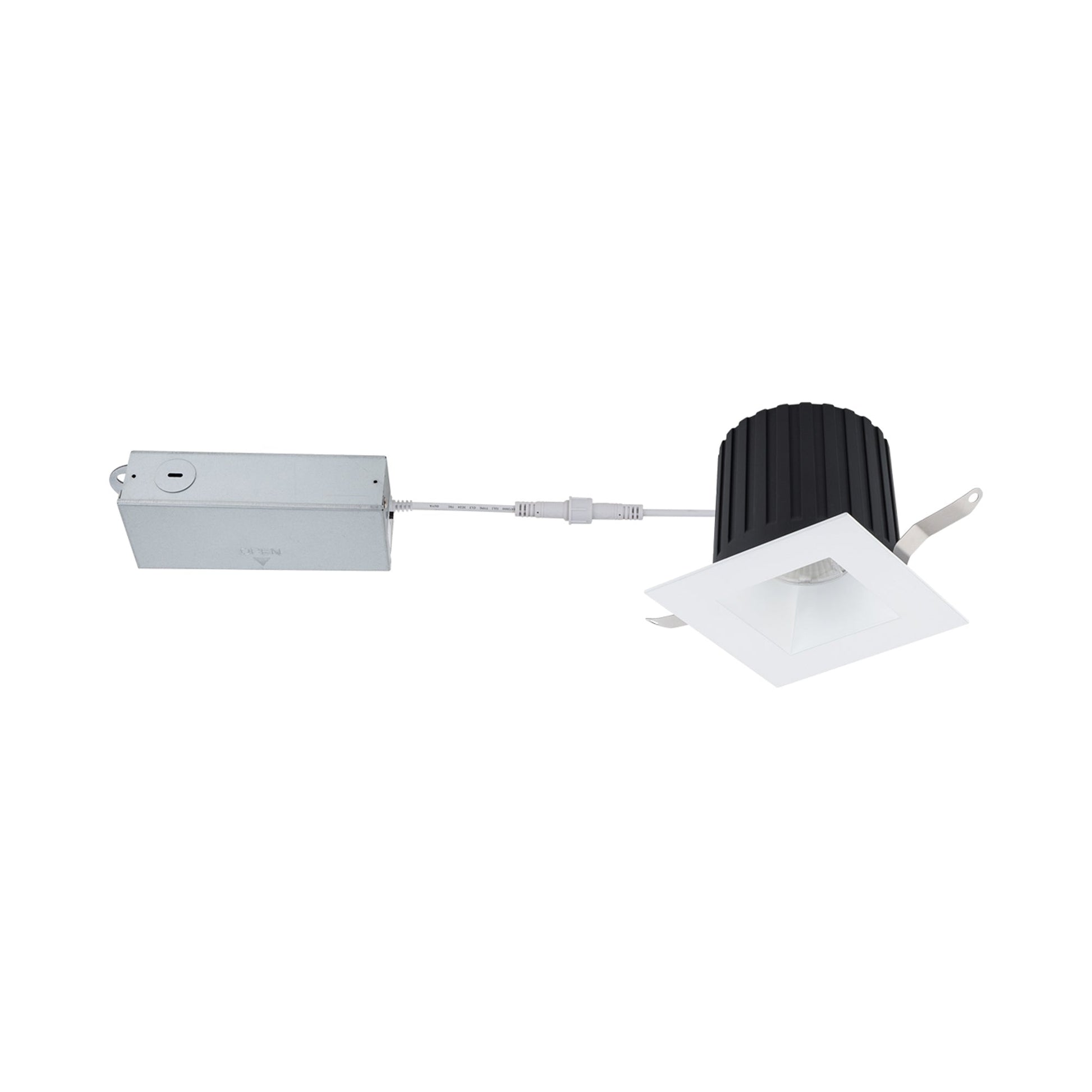

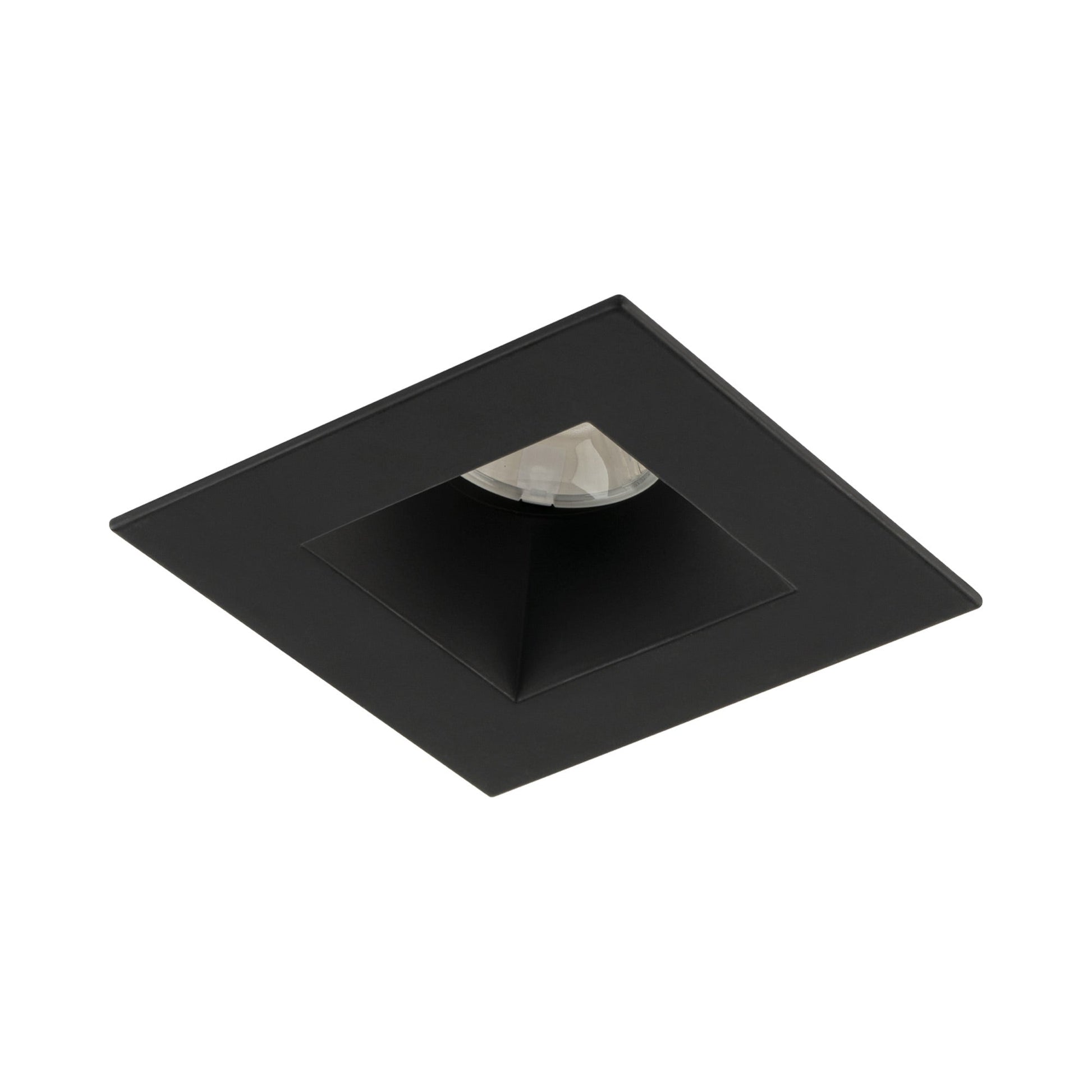

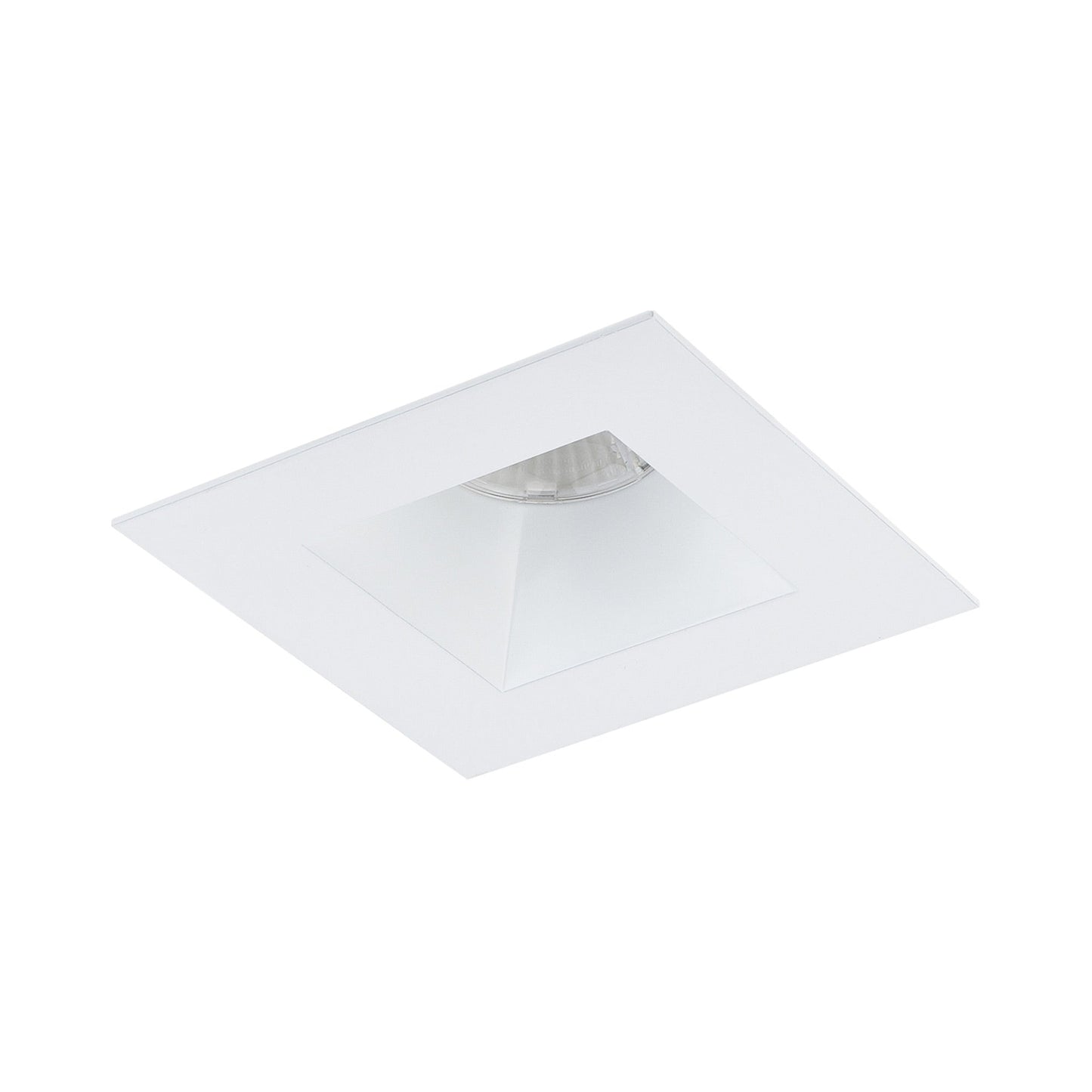

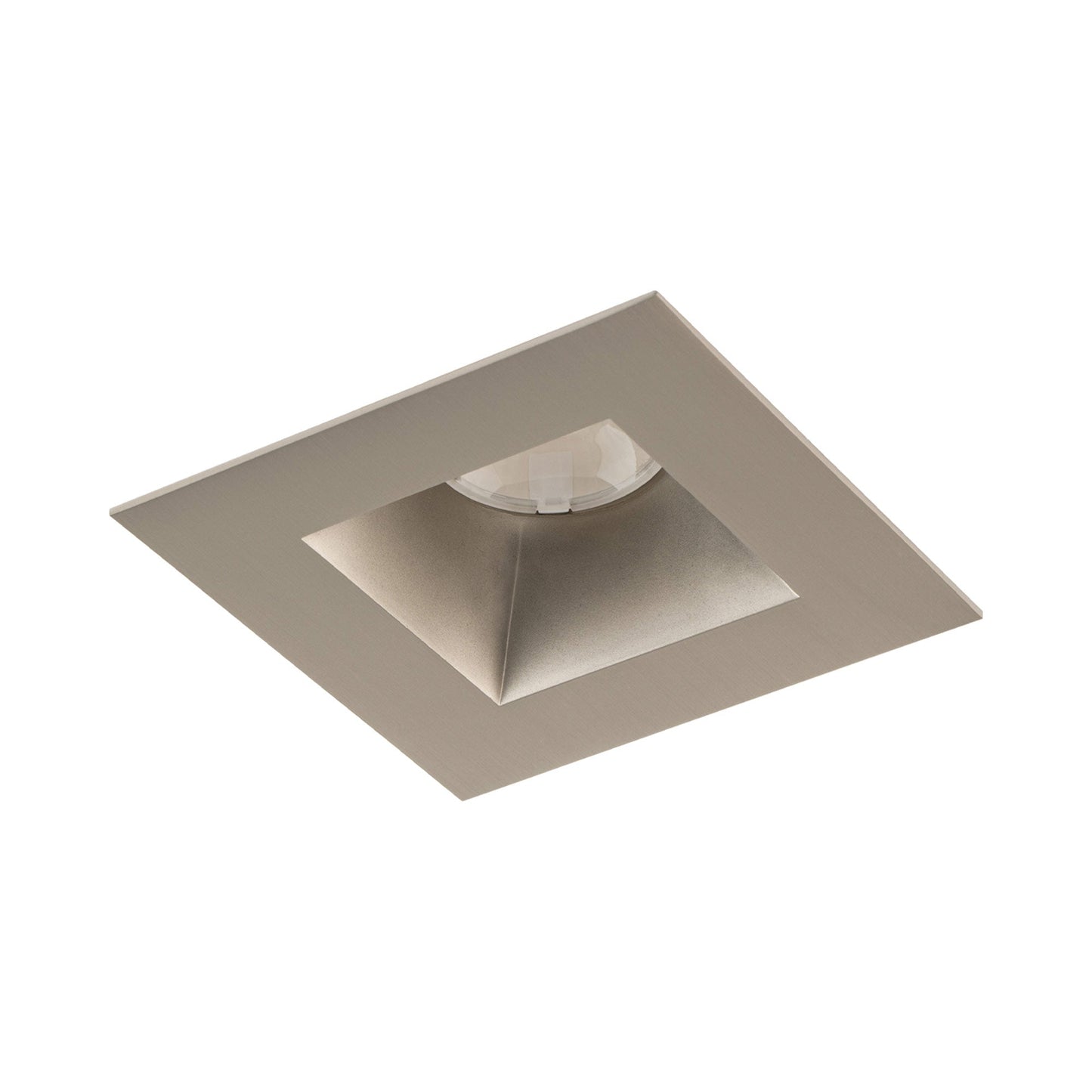

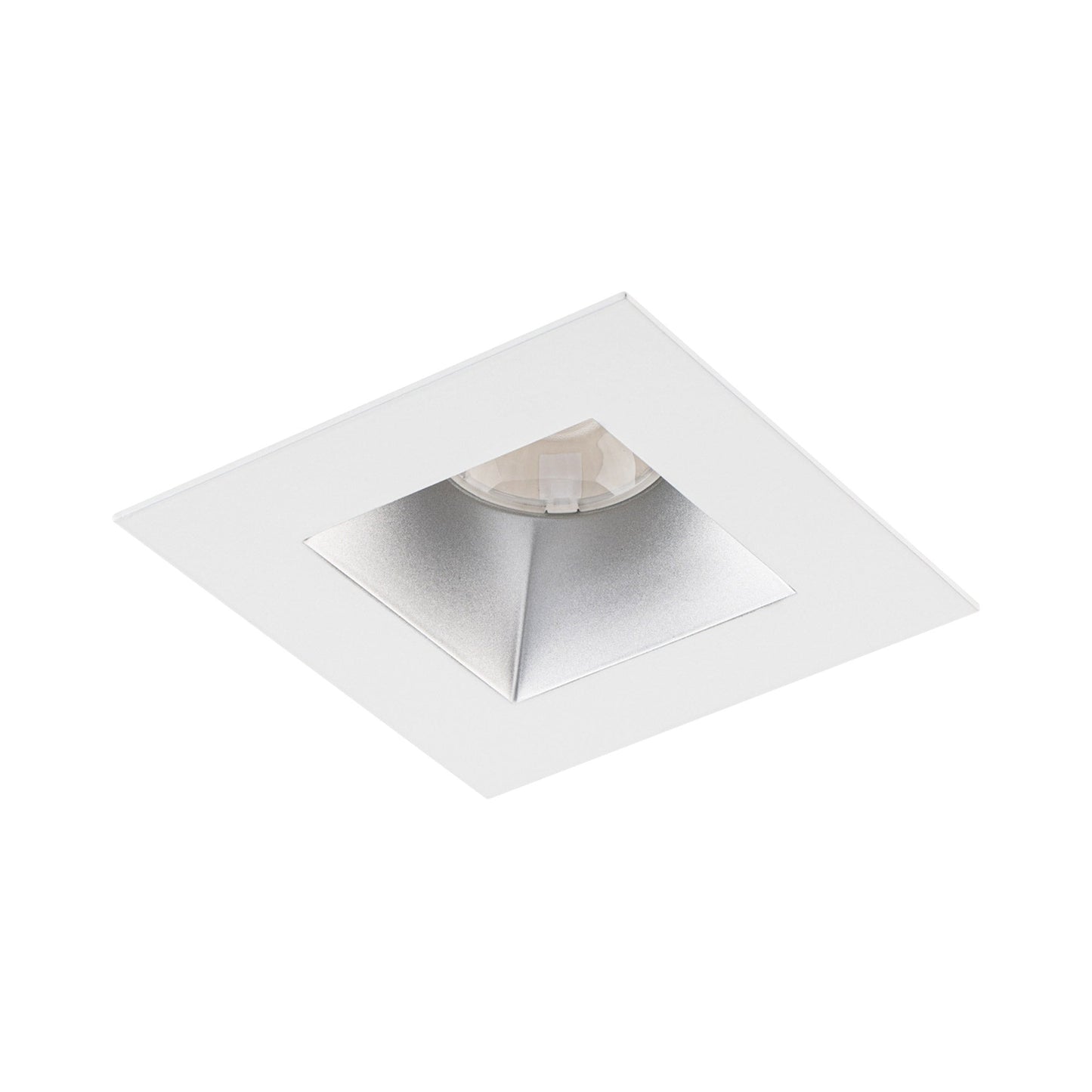

Ocular 3.0 Square Downlight LED Recessed Trim

A visually enticing square shape offers contemporary elegance perfect for energy-efficient recessed lighting installations. The Ocular 3.0 Square Downlight LED Recessed Trim from WAC Lighting features die-cast aluminum and heat sink construction in a choice of beam spread and color temperature values, with your choice of finish options to customize a project.

Product Features:

• Collection: Ocularc 3.0
• Country of Origin: China
• Warranty: 5 Year Functional, 2 Year Finish
• Dimming: ELV or TRIAC or 0-10V dimming compatible (for 95CRI)
• Warm Dim
• Beam Spread: 15-Degree, 18-Degree, 19-Degree, 25-Degree, 27-Degree, 50-Degree, 55-Degree
• Compatible Housings: R3BBRT-10, R3BNICA-10, R3BNICA-10U, R3BNICA-10U-EM (sold separately)
• Title 24 Compliant
• Energy Star
• Available in various beam spreads, color temperatures, CRIs and finishes

Dimensions:

• 90 CRI: 4.75"W X 3.88"H

• 95 CRI: 4.75"W X 4"H

Lamping:

15-Degree
• 2700K: 1 X 11W 120V integrated LED module; 865 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 11W 120V integrated LED module; 930 lumens, 90 CRI, 3000K (included)

18-Degree
• Selectable CCT: 1 X 13W 120V-277V integrated LED module; 1040 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K (included)

19-Degree
• 3000K-1800K: 1 X 11W 120V integrated LED module; 735 lumens, 95 CRI, Warm Dim (included)

25-Degree
• 2700K: 1 X 11W 120V integrated LED module; 860 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 11W 120V integrated LED module; 925 lumens, 90 CRI, 3000K (included)

27-Degree
• Warm Dim: 1 X 11W 120V integrated LED module; 730 lumens, 95 CRI, 3000K-1800K (included)
• Selectable CCT: 1 X 13W 120V-277V integrated LED module; 905 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K (included)

50-Degree
• 2700K: 1 X 11W 120V integrated LED module; 850 lumens, 90 CRI, 2700K (included)
• 3000K: 1 X 11W 120V integrated LED module; 735 lumens, 95 CRI, 3000K (included)
• 3000K-1800K: 1 X 11W 120V integrated LED module; 915 lumens, 90 CRI, Warm Dim (included)

55-Degree
• Selectable CCT: 1 X 13W 120V-277V integrated LED module; 985 lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K (included)

Ratings:

• Listing: ETL Listed, cETL Listed, Wet, Title 24 Compliant, Energy Star, IC, Airtight

Materials:

• Die-cast aluminum

Specifications - R3BSD-xxx
Specifications - R3BSD-xWD
Specifications - R3BSD-xCS
