Ocularc 3.5 Square New Construction LED Recessed Housing offers performance features in a simple but versatile package for residential and commercial applications alike.
Product Features:
- Collection: Ocularc 3.5
- Country of Origin: United States
- Warranty: 5 Year
- Dimming: 0-10V (100-5%), ELV (100-1%), TRIAC (100-1%)
- Compatible Trims: R3CSPT, R3CSDL, R3CSPL, R3CSWL, R3CSDT, R3CSWT (sold separately)
- Title 24 Compliant
- Available in various color temperatures

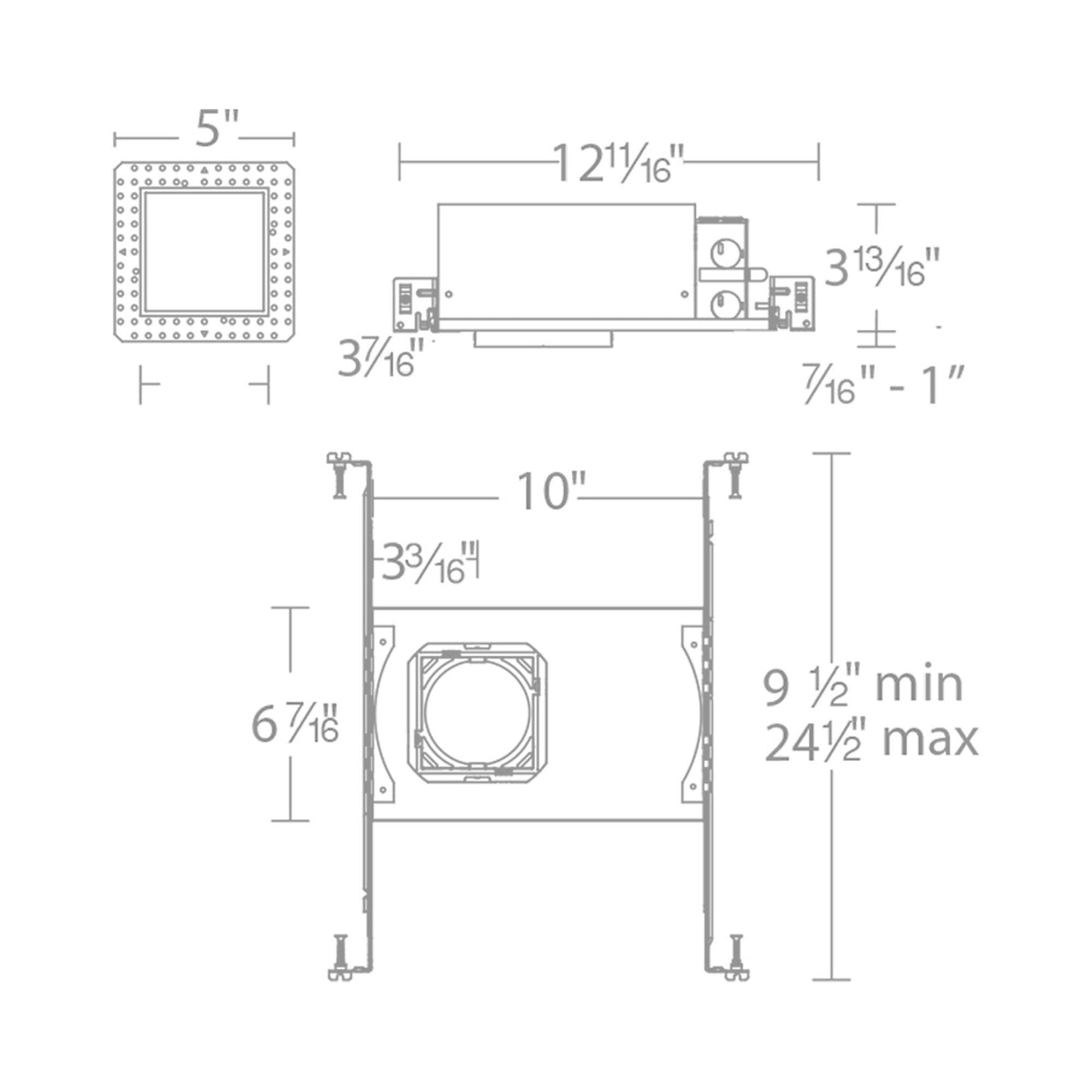

Dimensions:
- Dimensions: 12.69"W X 3.81"H; 9.5" - 24.5" Adjustable Length
- Cut-out: 4.25"
Lamping:
- 2700K: 1 X 13.5W 120-277V LED module; 865 lumens, 90 CRI, 2700K (included)
- 3000K: 1 X 13.5W 120-277V LED module; 930 lumens, 90 CRI, 3000K (included)
- 3500K: 1 X 13.5W 120-277V LED module; 950 lumens, 90 CRI, 3500K (included)
- 4000K: 1 X 13.5W 120-277V LED module; 1000 lumens, 90 CRI, 4000K (included)
Ratings:
- Listing: UL Listed, cUL Listed, Wet, IC, Airtight
Materials:
- Steel
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
