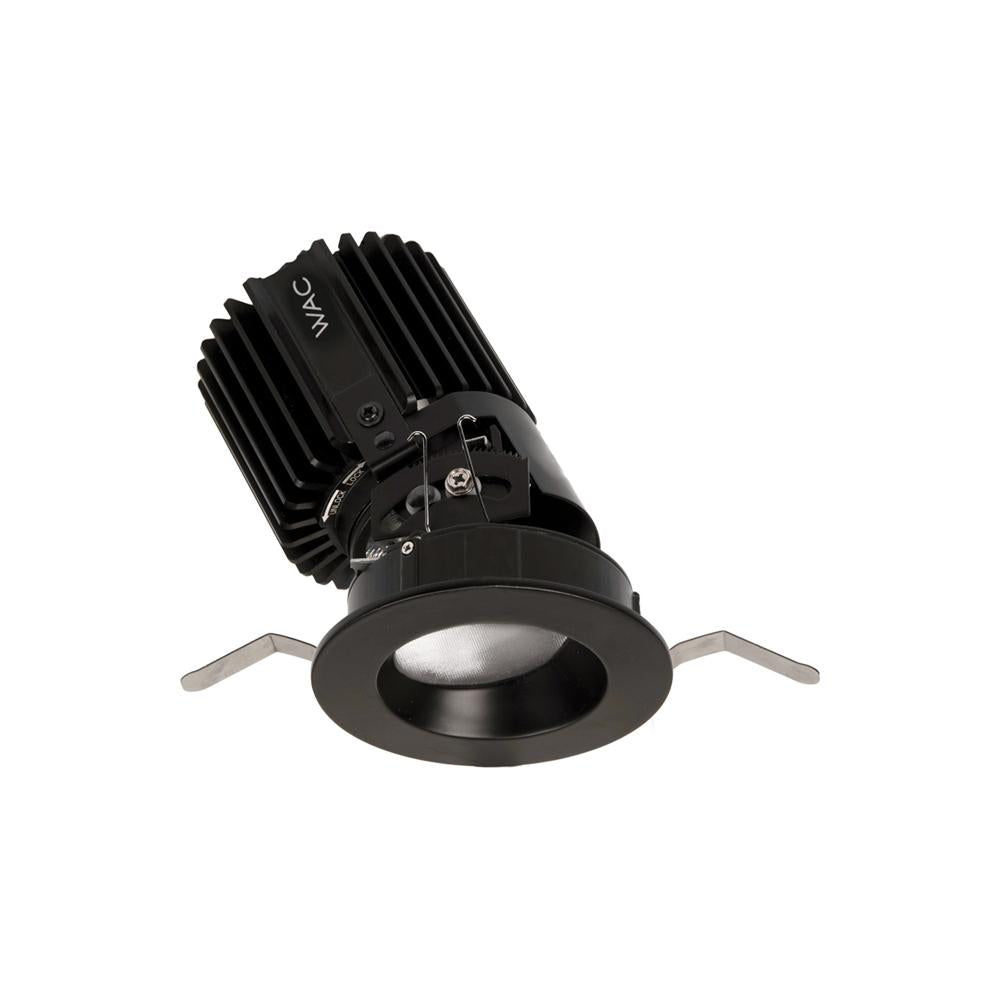

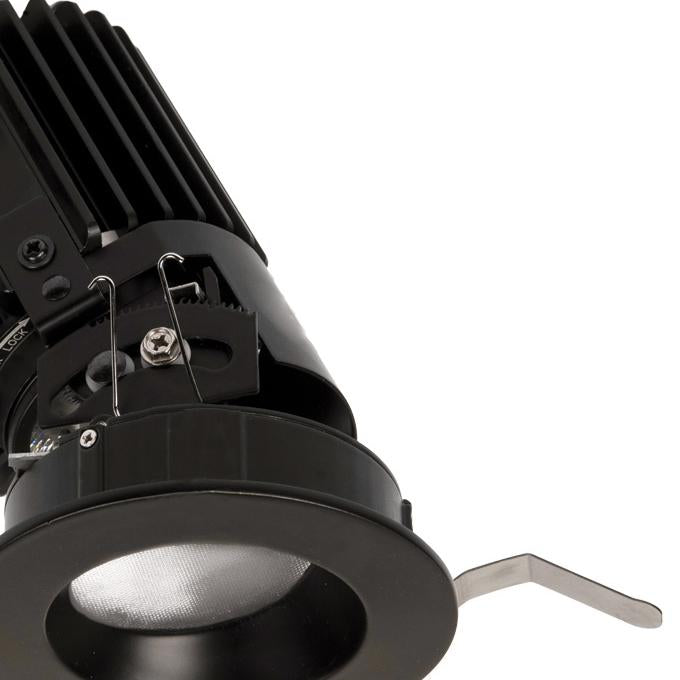

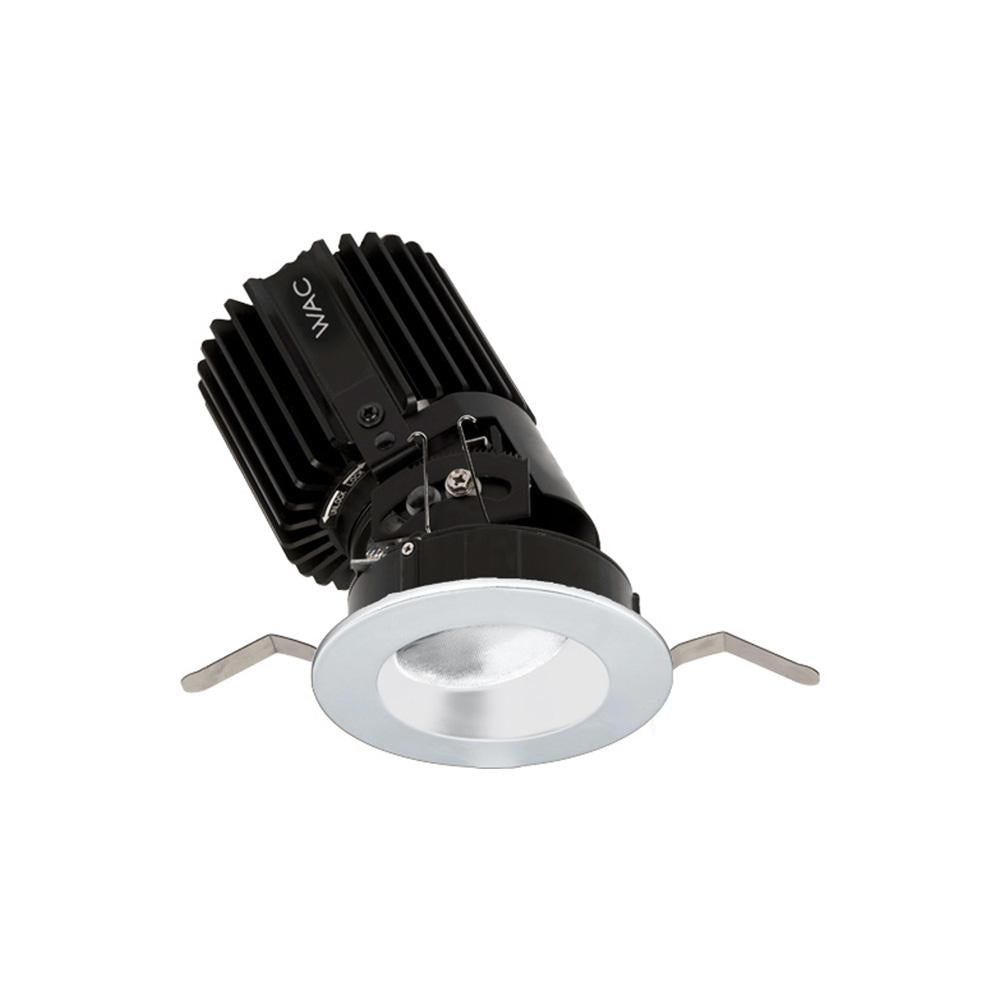

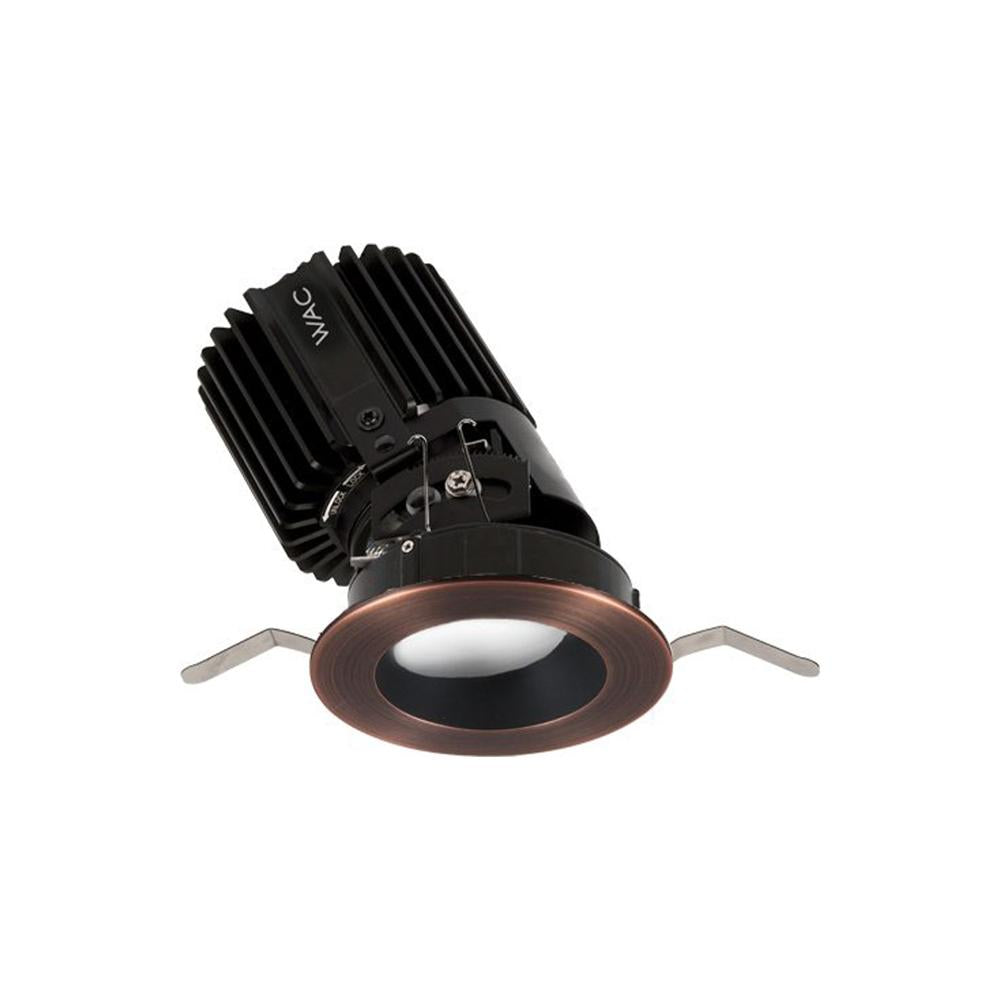

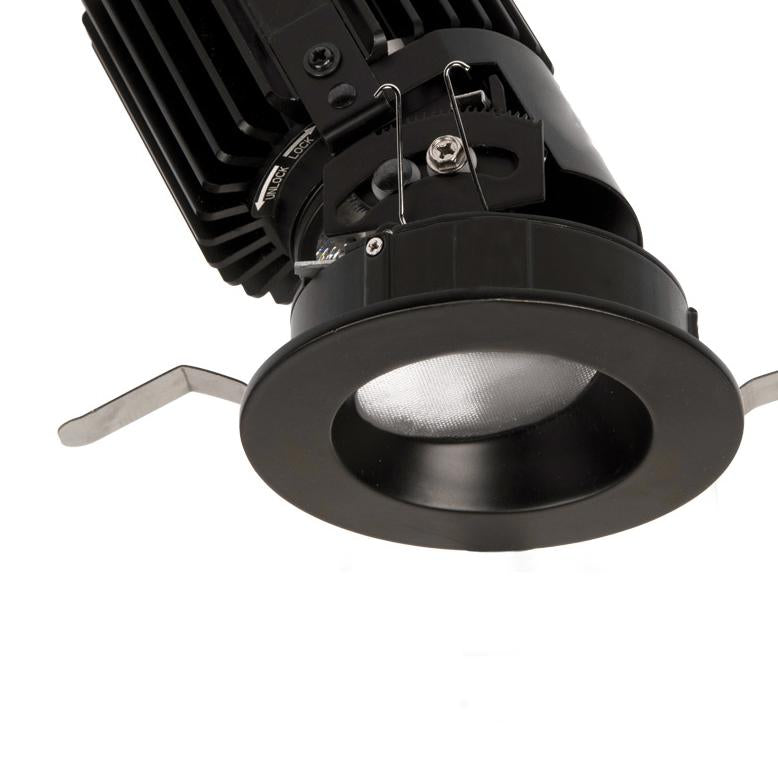

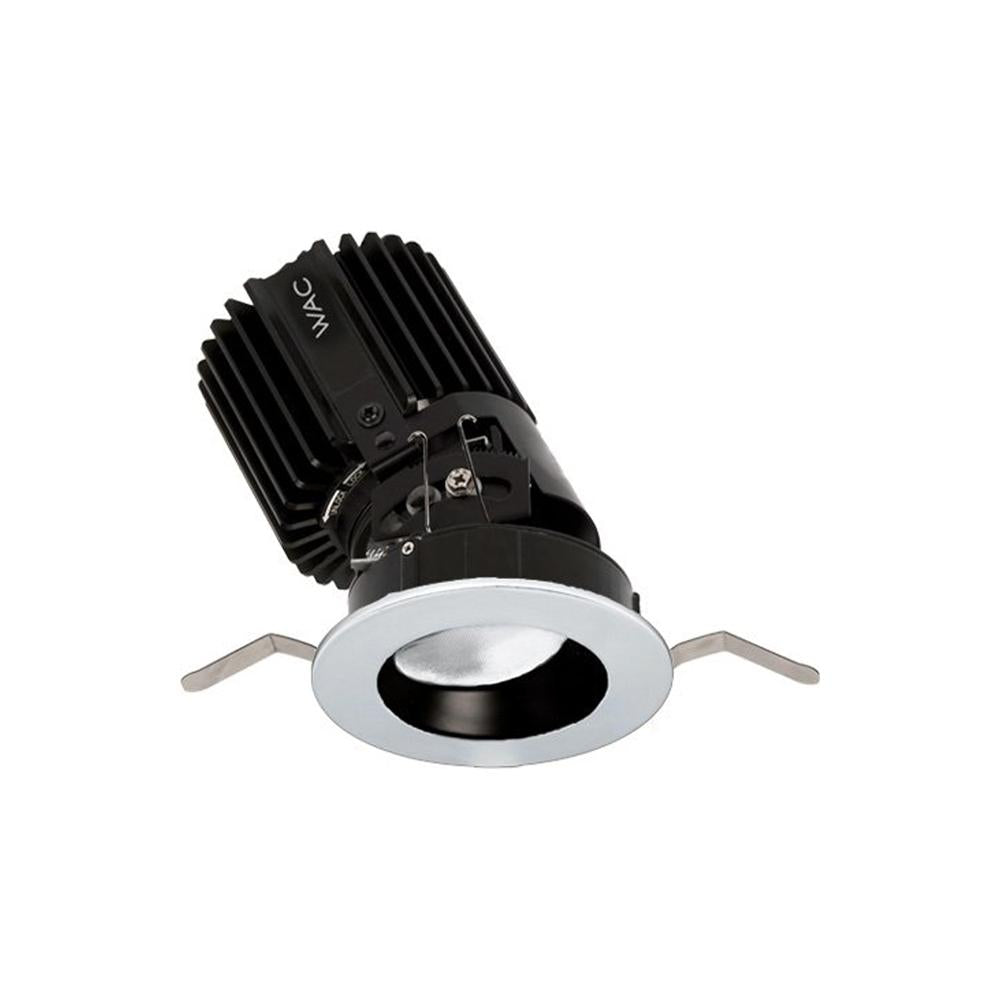

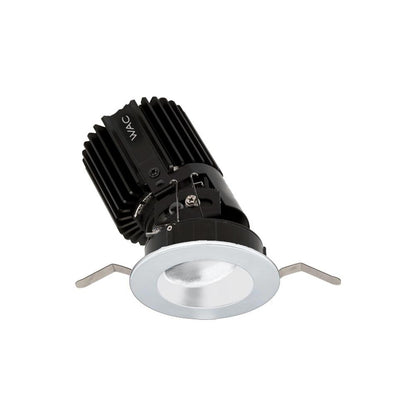

Volta 2IN Round Adjustable LED Recessed Trim represents an innovation in design and technology for architectural lighting. This high lumen and adaptable family of fixtures with a comprehensive set of round and square fittings, affords a sustainable solution for commercial, corporate, and upscale residential applications.
Product Features:
- Collection: Volta
- Country of Origin: United States
- Warranty: 5 Year
- Dimming: ELV (100-5%), 0-10V (100-0%), Lutron Hi-Lumen 1% Ecosystem Fade-to-Black option
- Beam Spread: 35-Degree, 25-Degree, 12-Degree
- Compatible Housings: R2RRL, R2RNT, R2RCT, R2RNL, R2RCL, R2BRT (sold separately)
- Title 24 Compliant
- Available in various beam spreads, color temperatures/CRIs and finishes
- More configurations available. Please contact cs@citylightssf.com to complete your lighting design
Dimensions:

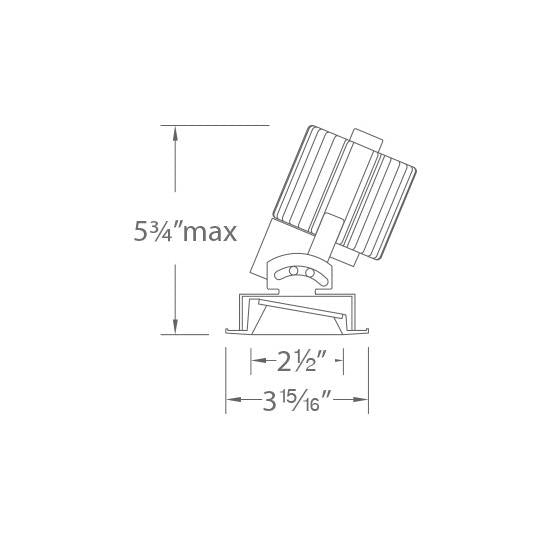

- Dimensions: 3.94"D X 5.75"H
Product Weight: 1.39 lbs
Lamping:
-
12-Degree
- 2700K/85CRI: 1 X 10/15W 120-277V LED module; 318/221 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 10/15W 120-277V LED module; 335/231 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 10/15W 120-277V LED module; 352/241 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 10/15W 120-277V LED module; 271/188 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 10/15W 120-277V LED module; 288/198 lumens, 90 CRI, 3000K (included)
-
25-Degree
- 2700K/85CRI: 1 X 15/22W 120-277V LED module; 869/604 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 15/22W 120-277V LED module; 915/630 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 15/22W 120-277V LED module; 961/659 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 15/22W 120-277V LED module; 741/512 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 15/22W 120-277V LED module; 787/540 lumens, 90 CRI, 3000K (included)
-
35-Degree
- 2700K/85CRI: 1 X 15/22W 120-277V LED module; 893/620 lumens, 85 CRI, 2700K (included)
- 3000K/85CRI: 1 X 15/22W 120-277V LED module; 940/649 lumens, 85 CRI, 3000K (included)
- 3500K/85CRI: 1 X 15/22W 120-277V LED module; 987/677 lumens, 85 CRI, 3500K (included)
- 2700K/90CRI: 1 X 15/22W 120-277V LED module; 761/526 lumens, 90 CRI, 2700K (included)
- 3000K/90CRI: 1 X 15/22W 120-277V LED module; 761/526 lumens, 90 CRI, 3000K (included)
Ratings:
- Listing: ETL Listed, cETL Listed, Wet
Materials:
- Die-cast aluminum
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
