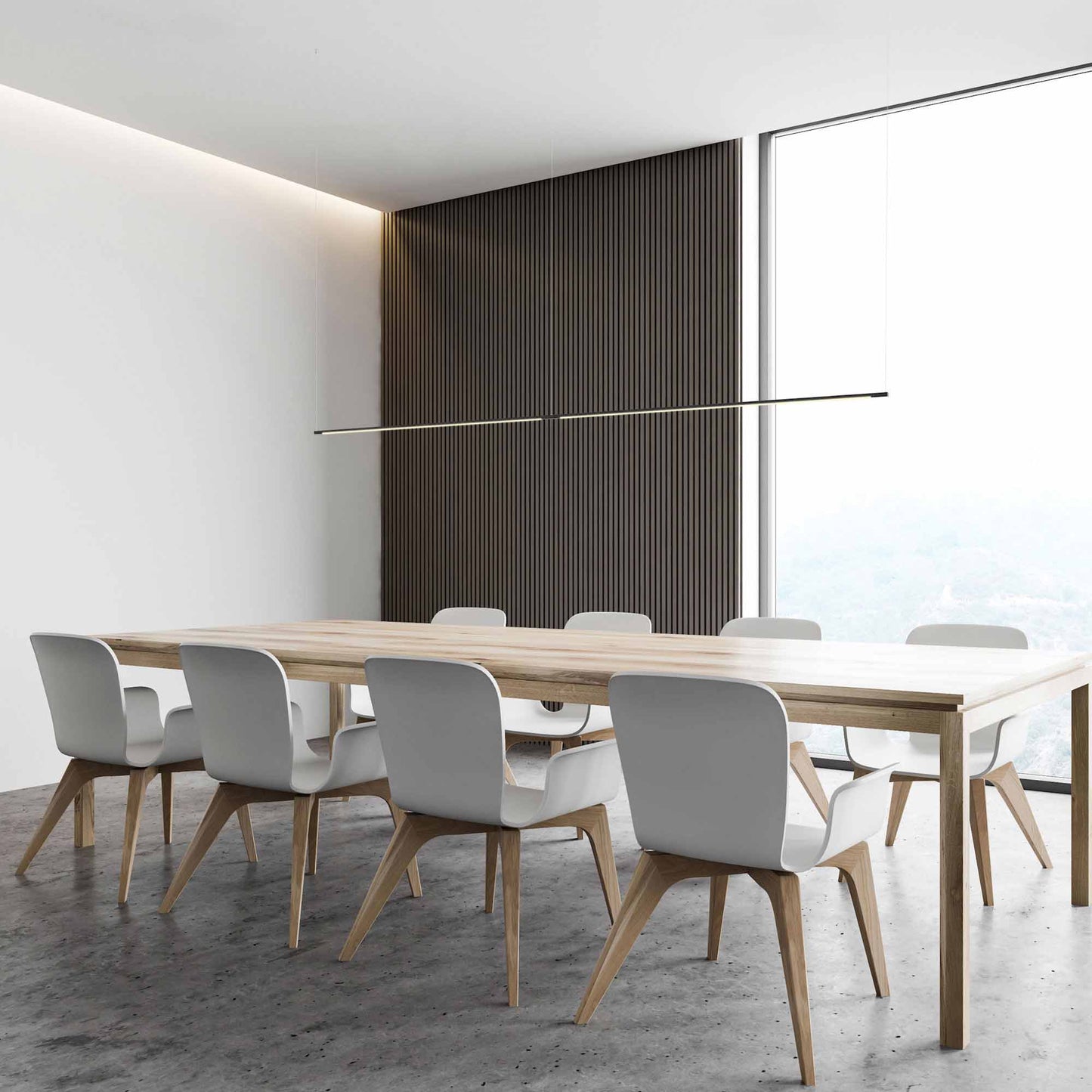

The Z-Bar Pendant line is an architectural lighting system featuring modular LED light bars. Choose from a variety of standard shapes, or design your own pendant using Koncept's dedicated web app. The "Linear" pendant is a minimal standard shape featuring 1-2 rotatable luminaires. Compatible with ELV wall dimmers.
Product Features:
- Collection: Z-Bar Pendant
- Designer: Kenneth Ng, Edmund Ng
- Country of Origin: China
- Warranty: 5 years; 1 year for LED driver
- Some Assembly Required
- Title 24 Compliant
- Available in various light bar lengths and finishes
- Awards:
- GOLD Best of NeoCon 2016
- If Design Award 2017
- Red Dot Design Award 2017
- Special Features:
- Modular system
- "Light bars" rotate 360 degrees
- Compatible with many ELV dimmers. Visit koncept.com/dimmers to download a dimmer compatibility chart.

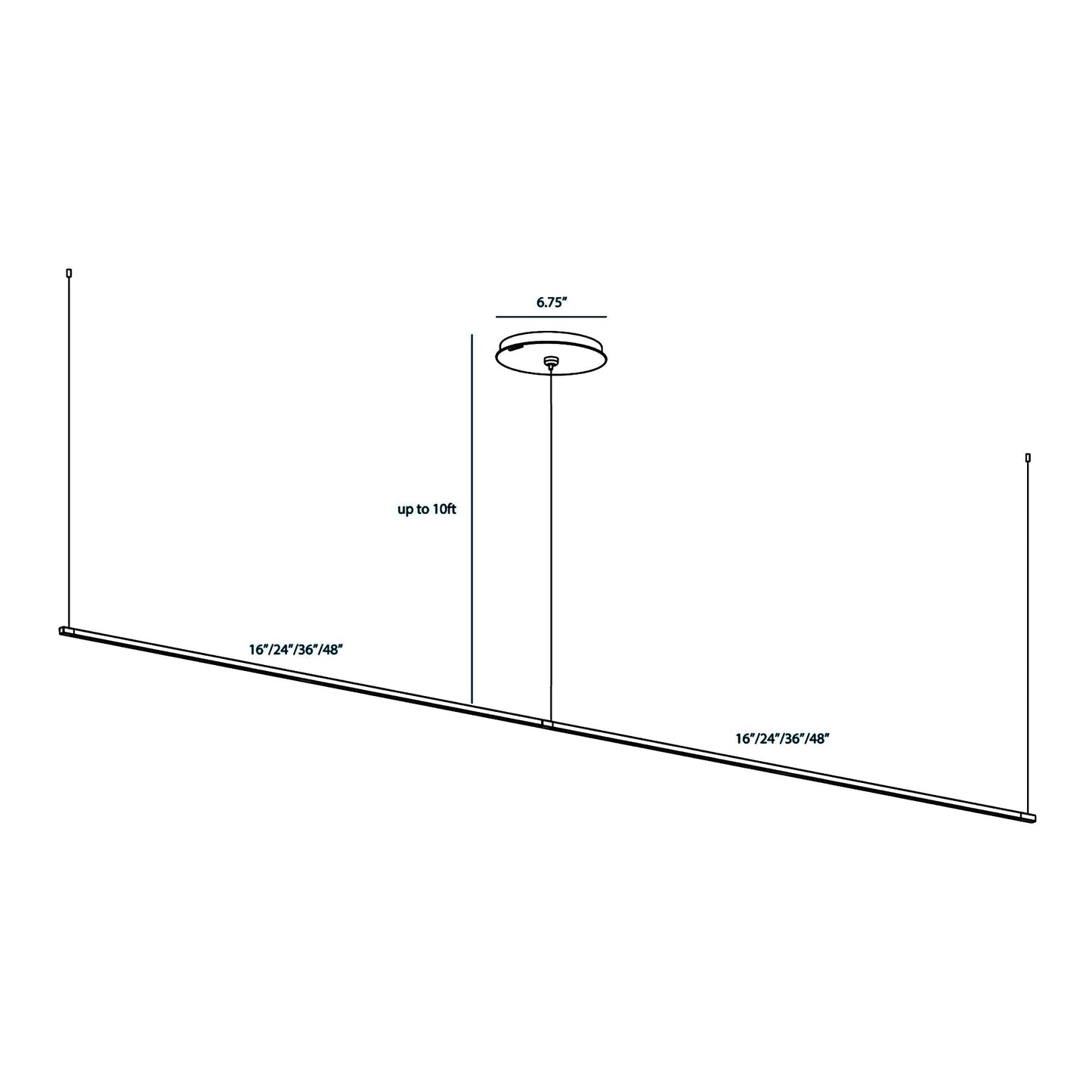

Dimensions:
- 36-Inch: 37.97"W X 0.5"H
- Canopy: 6.7"D X 1.3"H
- 48-Inch: 50.62"W X 0.5"H
- Canopy: 6.7"D X 1.3"H
- 72-Inch: 75.94"W X 0.5"H
- Canopy: 6.7"D X 1.3"H
- 96-Inch: 101.24"W X 0.5"H
- Canopy: 6.7"D X 1.3"H
Lamping:
- 36-Inch: 1 X 15W 120V-277V integrated LED module; 900 lumens, 90 CRI, 3000K (included)
- 48-Inch: 1 X 20W 120V-277V integrated LED module; 1200 lumens, 90 CRI, 3000K (included)
- 72-Inch: 2 X 15W 120V-277V integrated LED modules; 1800 lumens, 90 CRI, 3000K (included)
- 96-Inch: 2 X 20W 120V-277V integrated LED modules; 2400 lumens, 90 CRI, 3000K (included)
Ratings:
- Listing: UL Listed, cUL Listed, CE
Materials:
- Aluminum, zinc alloy, plastic
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
